Microsoft Surface Pro Charging Port Replacement

Written By: Jonathan Choi
  • Comments: 5
Microsoft Surface Pro Charging Port Replacement

Difficulty

Moderate

Steps

12

Time Required

15 - 30 minutes

Introduction

Use this guide to replace the charging port in a Microsoft Surface Pro.

  1. PQRaw1JYQHcXPT3o

    • Use a heated iOpener or a heat gun to heat the edges of the display and soften its adhesive.

    • If you're using an iOpener it may take several cycles of reheating and applying it to soften the adhesive enough. Every time, let the iOpener sit on the display for at least a minute before reheating to allow the adhesive to soften.

  2. EOHRkJ6QFxp3uiIP
    EOHRkJ6QFxp3uiIP
    BXPWniVZPXxcTncM
    g4gHKEkdLvpwQA1f

    • Apply a suction cup as close as possible to the edge of the display.

    • Use the suction cup to lift the edge of the display enough to insert an opening pick under the edge.

    • Slide the opening pick all the way around the edges of the display to cut through the adhesive on the bezel.

    • Do not insert the opening pick past the bezel of the display—you may permanently damage the display.

    • The bezel is much thinner on the bottom of the display, which is the side with the Windows logo. To avoid damage, don't poke too deep with the opening pick on the bottom edge.

    • Ribbon cables and a circuit board are approx. 0.6 cm from the edge of the glass.

    • Be very careful and move slowly during this step. The display is fragile and will crack if too much force is applied against it. If your tools seem stuck, apply more heat to further soften the adhesive.

  3. 2UrRBYvTW4QOb5Hg
    2UrRBYvTW4QOb5Hg
    klYqJPJEuhcaOIsr
    LE6y4NRP4qk2LSXt

    • Starting from the top edge, lift the display slightly.

    • If you feel any resistance, use heat and an opening pick to slice through any remaining adhesive.

    • Before completely removing the display:

    • Disconnect the three display cables.

    • Gently peel from the frame 2 orange ribbon cables that are glued to it, as those should stay with the display. (e.g. use a thin plastic card to separate them)

  4. qXyDDSIUyJjkrIpV

    • Remove the display.

  5. ahoRAWjIE42HIEWP
    ahoRAWjIE42HIEWP
    Us3pZ425IBctVuow

    • Using a T5 Torx screwdriver, unscrew a total number of 23 screws located on the outside panel of the Surface Pro.

    You should use T4 and T3 torx instead of T5

    Laurent akn -

  6. RA4wMNg5IYBcCYYI

    • Use the plastic opening tool or fingers to pry out the front camera.

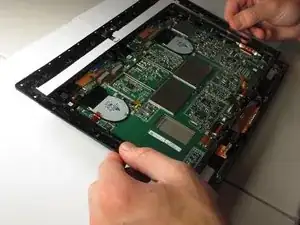

  7. JNFWUbNeIRktBZmy

    • Lift the outside panel from the Surface Pro

  8. NrJCpcMEqCOZIpfN
    NrJCpcMEqCOZIpfN
    kOBvAZvBng4eGScr

    • Use the T5 torx screw driver to unscrew the 6 T5 screws in the left and right outside metal panels

    • Use the T2 torx screw driver to unscrew the 23 T2 screws on the left and right outside metal panels

  9. CEltgIc6VcfBLB1f

    • Pull out left and right metal panels with hands

  10. OFIY3J22LwPUbHaK

    • Pull out the orange charging port strip using tweezers

  11. FnERk6rTQC6iC3et

    • Unscrew the two T5 torx screws located on each side of the charging port.

  12. udBrUc4fpjeYYvtv

    • Once you have unscrewed the charging port, you can gently pull it out with your hands.

Conclusion

To reassemble your device, follow these instructions in reverse order.
