Milwaukee Reciprocating Saw 6538-21-B36B (2010) Gearcase Insulator Replacement

Written By: Eairacolbert
  • Comments: 0
Milwaukee Reciprocating Saw 6538-21-B36B (2010) Gearcase Insulator Replacement

Difficulty

Moderate

Steps

3

Time Required

10 minutes

Introduction

Use this guide to replace a damaged gearcase insulator on a Milwaukee Reciprocating Saw 6538-21-B36B (2010).

The gearcase insulator is a component that protects the gear case in power tools. It helps prevent damage to the gear case by providing a layer of insulation and cushioning if damaged use this guide if it needs to be repaired.

  1. nZu3sVZTJwIcaghO
    nZu3sVZTJwIcaghO
    UC4GUIQDOaIOd2ZM

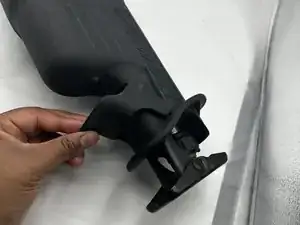

    • Pull up on the shoe release lever until it's perpendicular to the gearcase insulator.

  2. N5BDh4PdeQ3WdEQu

    • Pull the shoe assembly out from the saw.

  3. 6BNvQNTMkrEekZjP
    6BNvQNTMkrEekZjP
    6MJxROxmg6uQA5Uw

    • Remove the gearcase insulator by folding over the rubber, dislodging the insulator from the red shift lever, and pulling it off.

    • Using the screwdriver to help lift the rubber over the lever and folding it over may be helpful.

Conclusion

To reassemble your device, follow these instructions in reverse order.
