Motorola Edge (2021) Front-Facing Camera module Replacement

Written By: Jaier
  • Comments: 0
Motorola Edge (2021) Front-Facing Camera module Replacement

Difficulty

Moderate

Steps

8

Time Required

5 minutes

Introduction

Welcome to our guide on replacing the front camera of the Motorola Edge (2021). Whether your camera is damaged or malfunctioning, this step-by-step tutorial will help you replace the front camera module efficiently. Follow these instructions carefully to restore your device's selfie-taking capabilities in no time.

  1. pTBFtKNK1TEvZEVO

    • To start you need remove the back cover

  2. OLnFa5DewcTE41uH

    • To achieve this use two i-openers to heat up the glue.

  3. B634CVoVMQGjNISQ
    B634CVoVMQGjNISQ
    CFamTW6FaCs1THYd
    nY62V1qWf1IbJMNo

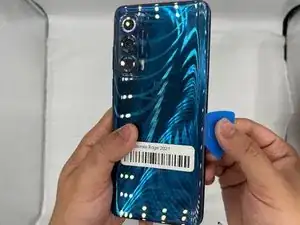

    • Use the iFixit opening tool to go in between the cracks of the Motorola

    • Keep sliding it along the sides of the phone until the glue is separated from the back-plate.

  4. uQg1NhNtOA3WqIVq
    uQg1NhNtOA3WqIVq
    mqf2SY6fMgHyIkKB

    • Now, use a screwdriver to unscrew the motherboard/camera casing. Be sure check under the glue for hiding screws.

  5. BiGc3NnPAqZsksg5
    BiGc3NnPAqZsksg5
    ivclgiDXTENe6ruW

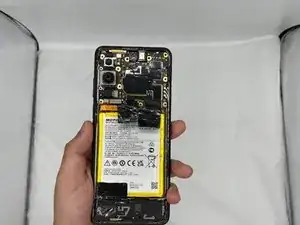

    • After you're done unscrewing, use the Ifixit opening tool to carefully pry open the casing.

  6. MbPahk6t1DIPdTjb

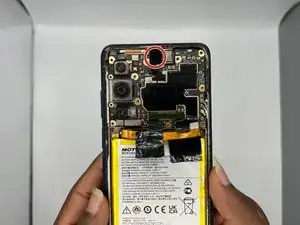

    • This is the Front facing camera module.

  7. sWmiEUyUuVAkOX2p
    sWmiEUyUuVAkOX2p
    aQHlUa4thsEJNE25

    • Carefully remove the camera module using the Ifixit opening tool.

  8. pAGRZgZugXa51MXr

    • The front facing camera module is now successfully removed. Congratulations

Conclusion

To reassemble your device, follow these instructions in reverse order.
