NexiGo NS32 Joystick PCB Replacement

Written By: Jedrzej Kostecki
  • Comments: 3
NexiGo NS32 Joystick PCB Replacement

Difficulty

Moderate

Steps

8

Time Required

5 - 10 minutes

Introduction

This is a guide on how to replace the controller sticks from inside the NexiGo NS32. There are 8 specific steps in this guide that describe how to take the controller sticks out of the controller. Be careful not to damage any of the internal components.

  1. 6vrwWBMKi2tEbUdZ

    • Orient the controller so that it is face down.

  2. BxwnnVkJVcyAvJVm
    BxwnnVkJVcyAvJVm
    MCypkOT2tNO3sg2Q

    • Remove the eight 9 mm Phillips screws that secure the rear case.

  3. qAvLOi5hM6GiBVZa

    • Lift the rear case up and off.

    • You may need to use an opening tool to help release the rear case, but avoid using excessive force so you don't damage the controller.

  4. WShgeGYIXoucl1ur
    WShgeGYIXoucl1ur
    Hp5mcAYhUDStDKLn

    • Grip the white battery connector and pull it directly out of its motherboard socket.

    • This may require some force, as the connectors are secured with a bit of adhesive. If you're having trouble with disconnection, apply some high-concentration isopropyl alcohol to the adhesive to loosen it.

    • Do not pull on the wires.

    How should I disconnect it?

    Alex Watkins -

  5. VgxbgRKjs1kS3Lfd
    VgxbgRKjs1kS3Lfd
    jNCSbYKwuT4uYTMJ
    5gZyK2atFyQo6B34

    • Lift the battery up and out.

    • Take care not to bend or puncture the battery as you remove it.

  6. 5gIFh24HMe2DXsll
    5gIFh24HMe2DXsll
    E1SjWtRxUfGbqmvh

    • Remove the three 9 mm Phillips screws that secure the joystick PCB.

    Capitalization on Phillips and screw measurement edit

    Alex Watkins -

  7. mCCNghLwHE4OyGqw
    mCCNghLwHE4OyGqw
    dSFYVXWdBifKLvjT

    • Flip up the black ZIF connector locking flap on the left side of the PCB.

    • Pull the ribbon cable directly out of its socket.

    Show how to remove all the ribbon connectors.

    Alex Watkins -

  8. 2mGSOkKpXaykLXRD
    2mGSOkKpXaykLXRD
    rdLaX5stPPDUbAZn
    GhGayUA4aGwcCbJB

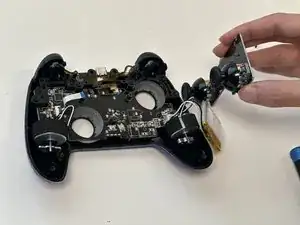

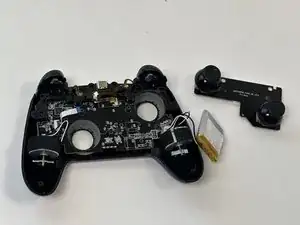

    • Lift out the joystick PCB.

Conclusion

To reassemble your device, follow these instructions in reverse order.
