Nikon 1 J5 Main PCB Replacement

Written By: Terrance
  • Comments: 0
Nikon 1 J5 Main PCB Replacement

Difficulty

Moderate

Steps

15

Time Required

30 minutes

Introduction

  1. miwjjftFuQahBFjY

    • Remove Micro SD card and Battery

  2. jHqwA5ycCkLXhSTr
    jHqwA5ycCkLXhSTr
    hFPpRQwyS2XVApFp
    ecY1VSgGJWOJxG2m

    • Remove 2 screws

    • Open plastic LCD connector cover

    • Lift FPC connector latch

    • Detach LCD FPC

  3. VCfwG2EXmQr4QnEd
    VCfwG2EXmQr4QnEd
    PRwPgENrYlbS2MOF
    twbGddOLkalKPVt3

    • Remove 4 screws

    • Remove LCD module

  4. ryFfJN4jTmHSNJux

    • WARNING!!! DO NOT TOUCH THESE Solder joints!!! High Voltage up to 300V..

    • Or discharge the flash condenser first, as per "Main PCB replace guide"

    • Remove 3 screws

  5. pPvJRsKXURiFV4gL
    pPvJRsKXURiFV4gL
    CROUdHXGRkAY2x2u
    ESbwPviGuL2XPtvw

    • Left side, in connector bay, remove 2 screws.

    • Bottom, reomve 2 screws

    • Right side, remove 1 screw

  6. LWBr4a56p2AeDVlP

    • Peel here and remove 1 screw within.

  7. 1vE4wUG36DeakwES
    1vE4wUG36DeakwES
    NVOlgO1dPd1pZihc

    • Pop open back case and remove it from body.

  8. MNJXOTAkZAIlllJV
    MNJXOTAkZAIlllJV
    lcAK5R2vBgYdF1Nv
    IvXEe4kZbwBa1YDa

    • Disconnect speaker

    • Disconnect keypad FPC

  9. cC4KTqPPWPFmROu2

    • Push latches from below

    • pop up and remove keypad.

  10. cJsuJSqypYiqWURD
    cJsuJSqypYiqWURD
    PEiCaVJf6u2HVAVv

    • Caution!!! High DC voltage up to 300V

    • Peel tape with an isolated tool (plastic crowbar, plastic tweezers, toothpick etc). DO NOT USE metal tweezers.

    • Use a 2-10kohm 5W resistor to discharge flash condenser, for atleast 10 seconds.

    • Check voltage across 2 points. Make sure it's below 5V DC

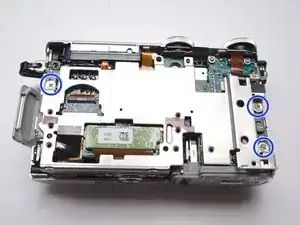

  11. KAALDCnOYiBKtdvi
    KAALDCnOYiBKtdvi
    M1D1pMKP3FVj4WjT
    YfUMQXtP5WSFE4Cj

    • Remove 3 screws

    • Remove 2 screws

    • Remove metal frame.

  12. AjFyhjR5RMGn6TGi

    • Flash solenoid and detect

    • Microphones and AF assistant LED

    • Keypad

    • Switches

    • NFC

    • WiFi and Bluetooth, Lens(back)

    • CMOS sensor

    • LCD

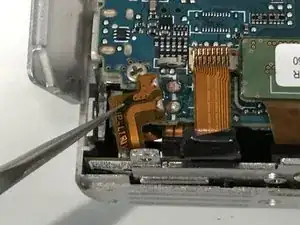

  13. 3SmUPEKH1j6ALCwL
    3SmUPEKH1j6ALCwL
    GB6um3l6HuCjCIdd

    • Desolder Flash Condenser

    • Desolder flash xenon tube

  14. c1myRBvCOB6aHj1y
    c1myRBvCOB6aHj1y
    E2gZswSFBmVmKhES

    • Lift top side of main PCB

    • Detach (pull out) lens contacts FPC

  15. LMYiJiem6UKQ2IHX
    LMYiJiem6UKQ2IHX
    R6xOGKvNliaGCOlD

    • Insert wisdom here.

Conclusion

To reassemble your device, follow these instructions in reverse order.
