Ninja Foodi SP101 Cooling Fan Replacement

Written By: ben
  • Comments: 0
Ninja Foodi SP101 Cooling Fan Replacement

Difficulty

Difficult

Steps

9

Time Required

15 minutes

Introduction

In the Ninja Foodi SP101, the cooling fan is a key part to ensure the unit returns to room temperature after use. Before starting this guide, ensure that the Foodi is disconnected from power and completely cool.

  1. UxblIxJeMQe3ypv1
    UxblIxJeMQe3ypv1
    Zf3TFjTmJtK3lLDy

    • Use a TR10 screwdriver to remove the four 11mm screws holding the black lever bar in place.

  2. IwYS5sBJgP3SMLR1

    • Remove the black lever bar.

  3. ofy1pbhhVRNHqS6i

    • Use a Phillips #1 screwdriver to remove the three 8mm screws on each side of the back panel.

  4. 6wNQesiRa2kTQ3J4
    6wNQesiRa2kTQ3J4
    r3CJCX1yDa13W6dD

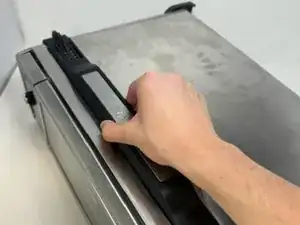

    • Flip the device upside down and open the bottom panel.

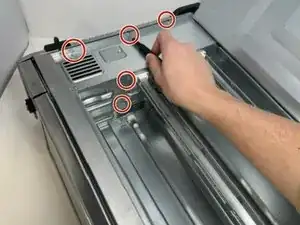

    • Remove the five 8 mm screws on each side of the interior using a Phillips #1 screwdriver.

  5. frPxJEWA6pBYuSXG
    frPxJEWA6pBYuSXG
    1gEXfH3lct1wOcWL
    iUR2DB4ecmbJXiVj

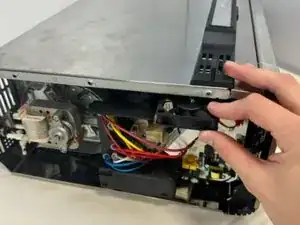

    • Remove the control side panel.

    • Lift the siding outward to remove the metal tab connection on the bottom.

  6. PwWbluNUFQLQLdOK
    PwWbluNUFQLQLdOK
    spOUbMnrwmmQPoph

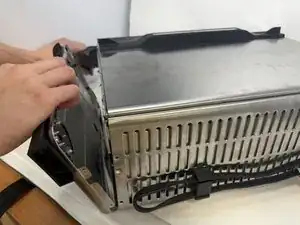

    • Lift the handle and pull the side panel out.

    • Remove the handle side panel.

  7. RZhPDIQfMRNbdYRj
    RZhPDIQfMRNbdYRj
    xH4ffYQ35wQcnATs
    ioATMgYslaOrpl1h

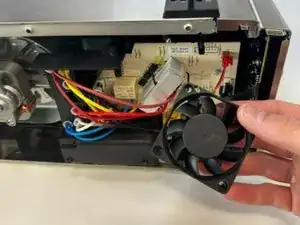

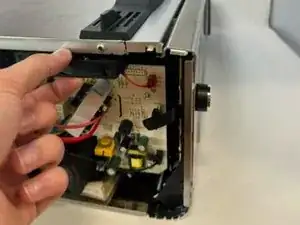

    • Remove the black cooling fan by bending the metal slightly upwards.

  8. SmOhUtFuoP3PdjXZ

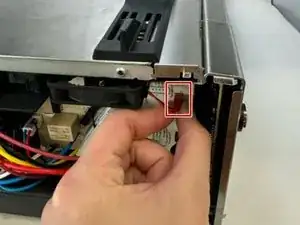

    • Remove the red cable that attaches the cooling fan to the motherboard.

  9. Z5EW52CP6yfVhOwV

    • Remove the cooling fan.

    • Replace the fan in its location before plugging it in.

Conclusion

To reassemble your device, follow these instructions in reverse order.
