Ninja Foodi SP101 Motor Replacement

Written By: ben
  • Comments: 0
Ninja Foodi SP101 Motor Replacement

Difficulty

Difficult

Steps

8

Time Required

20 minutes

Introduction

If the motor in your Ninja Foodi SP101 is malfunctioning, it may be difficult for your food to reach desired temperatures. Follow this guide to quickly replace your Ninja Foodi SP101 motor.

  1. UxblIxJeMQe3ypv1
    UxblIxJeMQe3ypv1
    Zf3TFjTmJtK3lLDy

    • Use a TR10 screwdriver to remove the four 11mm screws holding the black lever bar in place.

  2. IwYS5sBJgP3SMLR1

    • Remove the black lever bar.

  3. ofy1pbhhVRNHqS6i

    • Use a Phillips #1 screwdriver to remove the three 8mm screws on each side of the back panel.

  4. 6wNQesiRa2kTQ3J4
    6wNQesiRa2kTQ3J4
    r3CJCX1yDa13W6dD

    • Flip the device upside down and open the bottom panel.

    • Remove the five 8 mm screws on each side of the interior using a Phillips #1 screwdriver.

  5. frPxJEWA6pBYuSXG
    frPxJEWA6pBYuSXG
    1gEXfH3lct1wOcWL
    iUR2DB4ecmbJXiVj

    • Remove the control side panel.

    • Lift the siding outward to remove the metal tab connection on the bottom.

  6. PwWbluNUFQLQLdOK
    PwWbluNUFQLQLdOK
    spOUbMnrwmmQPoph

    • Lift the handle and pull the side panel out.

    • Remove the handle side panel.

  7. ijFbEGNFHLyseOmB
    ijFbEGNFHLyseOmB
    ZOPPKZYUpo1DNkk6
    ULIJBySd632MUoGa

    • Open the bottom door.

    • Remove the five 8 mm screws located on the control panel side using a Phillips #1 screwdriver.

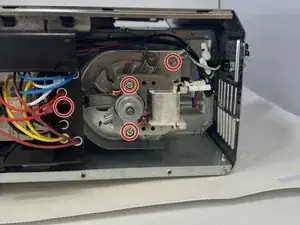

  8. DNQfHGkCYQ2FLFu5

    • Remove the four 1 mm screws with a Phillips #1 screwdriver.

    • Remove the motor from the device.

Conclusion

To reassemble your device, follow these instructions in reverse order.
