Nintendo Wii Remote Main Buttons Replacement

Written By: Emily
  • Comments: 7
Nintendo Wii Remote Main Buttons Replacement

Difficulty

Moderate

Steps

6

Time Required

5 - 10 minutes

Introduction

Removing the main buttons requires opening the device. The main buttons include all buttons except the trigger style B button.

  1. CJPWTUaLIJOrlTjL
    CJPWTUaLIJOrlTjL
    IKLUxxGL3i16PRVa

    • Flip the Wii Remote over so the battery cover faces you.

    • Push up on the bottom tab.

    • Remove the battery cover.

    my battery cover is different. The batteries are attached to the actual cover and come out when the back is removed.

    Kim Pearson -

  2. SpfsueKLnC6dearn

    • Remove the first battery by pressing down on the positive end and pulling the battery out.

    • Remove the second battery by pushing up on the positive end and pulling the battery out.

  3. KRhx6OCSHj1kHfvi

    • Using a tri-point Y1 Screwdriver, remove the two center 7mm screws by turning them counterclockwise.

    • Repeat with the two bottom screws.

  4. I6UxdQOmurieZqPI
    I6UxdQOmurieZqPI
    PgoiMal1wGhU3rSa

    • With the flat end of a spudger, gently apply pressure to the tabs located on left side of the controller.

    • These tabs are breakable. However, if the tabs are broken the controller will still function.

    • Open the front plate like a book.

    • Small parts may fall out as you open the front plate.

    Mine is not opening like a book? What do I do?

    Micah Thompson -

    It stops short of explaining replacing rechargeable battery. Unless you’re referring to the AA’s which don’t involve removing cover

    Sticky Insides -

  5. rwSLbGn2VJJcNFo3
    rwSLbGn2VJJcNFo3
    wTgdZlqTeUiDwOKI

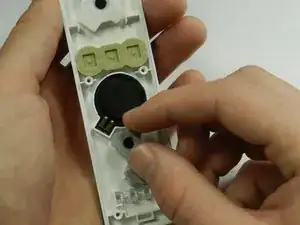

    • Working on the inside of the front cover, peel off the three rubber pads covering the buttons.

  6. UIABusoHwWVBPjut

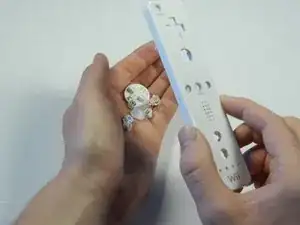

    • Flip over the cover, allowing the buttons to fall into your hand.

    • Be ready to catch all the buttons, some are very small. If a button does not fall out apply gentle pressure from behind.

    • When reassembling, put each plastic button in its allocated slot. Each button only fits snugly in one slot.

    • The best option for you is rotate the Wii Controller by 180°. If you obey this note, the small parts wont fall off and then you can remove the buttons.

Conclusion

To reassemble your device, follow these instructions in reverse order.
