ORFELD EV-660-S222 Power Button Spring Replacement

Written By: Emma Lucas
  • Comments: 0
ORFELD EV-660-S222 Power Button Spring Replacement

Difficulty

Moderate

Steps

5

Time Required

45 minutes

Introduction

If the power button for your ORFELD EV-660 has been giving you trouble, such as no longer properly activating the vacuum or getting stuck pressed down, this guide will show you how to replace the spring inside in a few easy steps.

  1. gZYwImWBdfLRcfNV

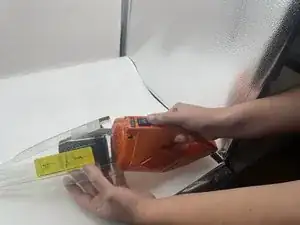

    • Separate the dust cover and the motor from the vacuum body by pressing the eject button.

  2. UtSNDOCkbatEon5B
    UtSNDOCkbatEon5B
    BlReehdagOcBDdBf

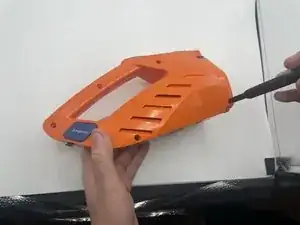

    • Place the vacuum on its side, with the screws facing towards you.

    • Remove the 11.5 mm screws using a Phillips #1 screwdriver.

  3. YvPpPeDpKJKwECvL
    YvPpPeDpKJKwECvL
    6PCoOBWUNWKLGDyF

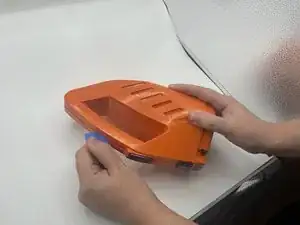

    • Using tweezers, remove the sticker connecting the two halves.

    • Use the opening pick to gently separate the top half and the bottom half of the vacuum.

    • Press the blue buttons near the sides of the battery LEDs to remove the top half.

  4. UhmOHNMkjQwUGv4i

    • Lift the battery slightly to reveal the pin connectors.

    • Gently disconnect the six-pin connector from the battery.

  5. ZkPxNlENTFePjJra
    ZkPxNlENTFePjJra
    TEY2FQEysCBhcywZ
    ulSW4l2TeBYvNIoG

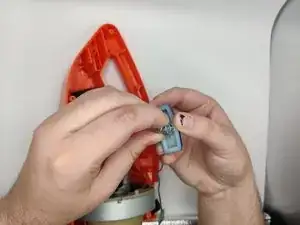

    • Gently pull out the power button from the board.

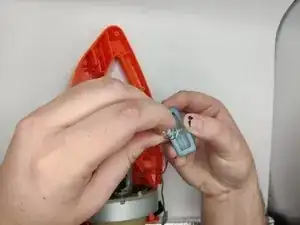

    • Gently pull up and twist the old spring off of the button.

Conclusion

To reassemble your device, follow these instructions in reverse order.
