OnePlus 6 Front Facing Camera Replacement

Written By: Andrew Davis
  • Comments: 0
OnePlus 6 Front Facing Camera Replacement

Difficulty

Moderate

Steps

4

Time Required

25 - 35 minutes

Introduction

This guide will give a step by step instruction on how to safely remove the components leading up to the front facing camera.

  1. 4LPPRpxuHYWCSVEp
    4LPPRpxuHYWCSVEp
    srHWw6rUbsaVBXIX

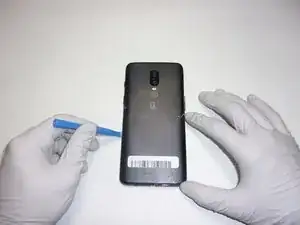

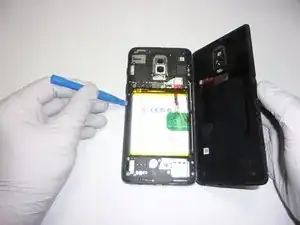

    • Use a heat gun to gently heat the back edges of the phone to loosen the adhesive.

    • Use a plastic opening tool to pry the back cover up.

    • Start from one of the left corners and work your way around the phone using the plastic opening tool.

    • Carefully lift the back cover off.

    • Be careful not to damage or unseat the camera cable while removing the back cover.

  2. HhlxgHxGDTGYnTPZ
    HhlxgHxGDTGYnTPZ
    jBQAWrefJQ1EjH6w

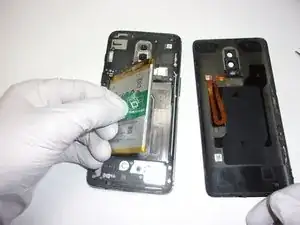

    • Use tweezers to disconnect the red pull-away tab up from the motherboard.

    • Detach the orange camera ribbon cable, below the red tab, using the tweezers.

    • Grip the green tab and lift the battery up and out of the chassis.

  3. FSCVGA1ttPtAP1DA
    FSCVGA1ttPtAP1DA
    K6eG6FCws24FsRqk

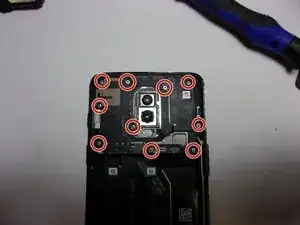

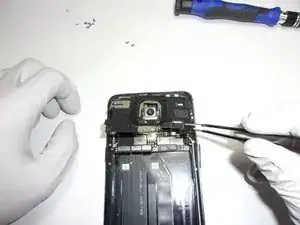

    • Use a Phillips #000 screwdriver to remove the ten screws from the motherboard harness.

    • Pull the motherboard harness up using the tweezers

  4. KccW2RrLbA6qkhHB
    KccW2RrLbA6qkhHB
    uBkMFFxE4rUXEtN3

    • Use the pointed tip of a spudger to lift the front-facing camera's pin connection, gently prying on the plug vertically until it completely releases.

    • Lift the front-facing camera up and out using tweezers.

Conclusion

To reassemble your device, follow these instructions in reverse order.
