Optoma HD20 Air Filter Replacement

Written By: Trever
  • Comments: 11
Optoma HD20 Air Filter Replacement

Difficulty

Easy

Steps

6

Time Required

5 - 10 minutes

Introduction

Use this guide to remove the air filter from your Optoma HD20.

  1. WIVqHR2XosajwRLT
    WIVqHR2XosajwRLT
    TmhchmScJTlA2pt5

    • Twist the focal cap clockwise until it is fully extended.

    • Remove the focal cap by pulling it straight out.

    The pictures don't really do justice to how hard it is to pop the focal cap off. One actually has to pull pretty hard, I was afraid of breaking something, but it all worked out.

    eislerzoltan -

    you da best <3 ty for comment

    Weyland Chiang -

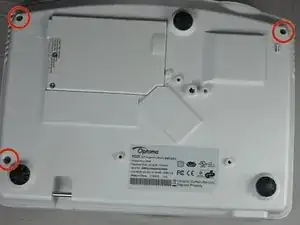

  2. wWE2cCrMiObJdQ4l

    • Use a Phillips #1 screwdriver to remove the three 7.5mm screws on the bottom of the device.

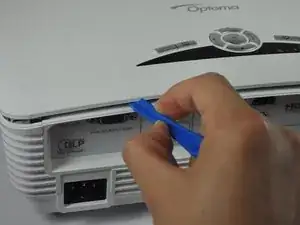

  3. DCYmASOdC2krhjVQ

    • Use a plastic opening tool to gently pry the top cover off of the device.

    • It is easier to pry off the cover from the back side just above the HDMI ports.

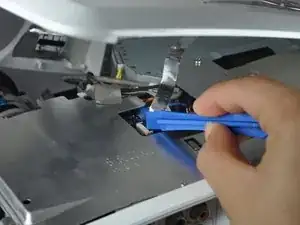

  4. AHZREYIPE1qwRGKX

    • When removing the cover, be cautious of the ribbon connecting the top buttons to the main circuit board. The ribbon must be disconnected before proceeding.

    • Remove the ribbon by disconnecting it from the main circuit board.

    • Lift up the clip holding it down and pull the ribbon out.

    The black part is the clip that lifts up. Then gently tug on the cable.

    The instructions are out of order here.

    dlwalter -

    Wish I had read your comment before struggling with it for what seemed like hours.

    eislerzoltan -

    Any advice for if you rip that ribbon?

    robby_g -

    Yes… Advice for when you go into this BEFORE consulting the internet and accidentally RIP it out?

    Mathew Amaral -

    I ripped the ribbon. Where can I find it’s replacement?

    Rohit Ghatol -

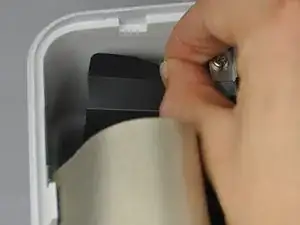

  5. OrP2vbro22Vdag2n
    OrP2vbro22Vdag2n
    Shy5L1TWJCmh16AM
    FWyuWc5OlZrYGtun

    • Carefully peel off each air filter from the device

    • Pull up on the air filter to remove it.

    I did not see at least one filter in my projector after opening it. is it normal?

    anonymous 9202 -

    I didn’t see any either

    Michael -

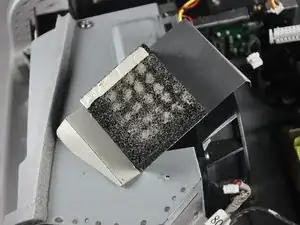

  6. LWMFCGpGF1LQWqgu

    • Remove the air filter from the device.

    • Try not to deposit dirt from the air filter into the inside of the device.

    Now that I've opened and found the three dirty filters what do I do with them? Is it to wash, brush, blow or replace? Where do I get new identical filters? Thanks.

    W Assis -

Conclusion

To reassemble your device, follow these instructions in reverse order.
