PDP Rematch Action Buttons Replacement

Written By: Katie Barnes

Comments: 0

Difficulty

Moderate

Steps

Time Required

10 minutes

Introduction

If your action buttons (the buttons labeled X, A, B, Y) are not working, not performing the correct action when pressed, or taking longer to pop back up, use this guide to replace the action buttons for the PDP Rematch Controller, model number 500-134-1.

The action buttons allow a user to perform different actions in video games.

Before using this guide, check for dirt or other debris buildup underneath the buttons. You can typically clean them using a Q-tip or a cotton pad with some rubbing alcohol.

Also, make sure the device is disconnected from any external power source.

Tools

Step 1

Grip one side of the controller firmly.
Insert an opening pick into the crease between the faceplate and the body of the controller.
Once the pick creates a gap in the crease, gently insert another pick into a different section of the crease.
Carefully move the picks along the controller's crease line until you hear a popping sound.
Gently lift off the faceplate by hand.

Step 2

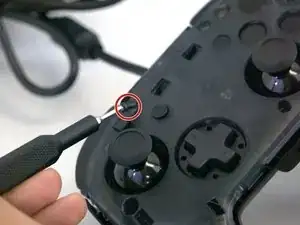

Remove the 8 mm screws from the hard cover using a JIS #00 screwdriver.
Since the screws have been removed, avoid shaking or moving your controller too much to prevent other buttons from falling out.

Step 3

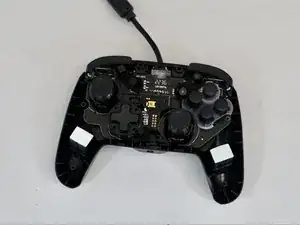

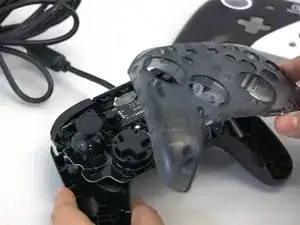

Gently lift off the hard cover with your hand; it should not need much force.

Step 4

Optional: Use a cotton pad or cotton swab with some alcohol to gently clean any debris.
These buttons are not connected to the device and will fall out, so be careful.

Step 5

Carefully remove the buttons from the device and set them aside.
From here, you can do a deeper clean, or replace them.
The clear plate will not sit right or click into place if the buttons are not aligned straight.

Conclusion

To reassemble your device, follow these instructions in reverse order.
