Introduction

The front housing shell should be replaced on your PDP Rematch Advanced controller if it is cracked or damaged. If you need to replace the front housing shell, separate the front and back shell of the controller with this guide.

  1. 4ZafLtvJmVV2y1CU
    4ZafLtvJmVV2y1CU
    IuEe4WwYLEBLRUbm
    GPPqjUuJTaJvBsLN

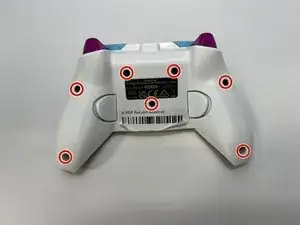

    • Orient the controller so the back side is facing you.

    • Use a Phillips #000 screwdriver to remove the seven 9 mm screws that secure the back shell.

  2. AA2aCeB1GAlSHSEF
    AA2aCeB1GAlSHSEF
    iU6L543eTyeGIV5S
    LdM1ppIcE4HcRTiZ

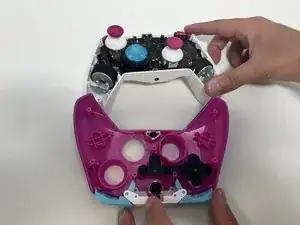

    • Pull apart the controller's front and back shells with moderate force.

    • Orient the controller so that the front shell is facing the floor to prevent the face buttons from falling out.

  3. tNh1JP4tUFKJLHGE
    tNh1JP4tUFKJLHGE
    5NWOhDviU6MCMvGB
    KPdmj654wPNAjAFi
    • Peel the rubber piece off the back of the face buttons.

  4. pLWxMkSKSssFRfFF
    pLWxMkSKSssFRfFF
    uyEXvWEXEsMBIYKf
    RftO3BPiZQdMsKyR

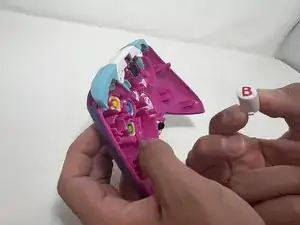

    • Push all the face buttons out from the front of the shell.

  5. bKVrDhVxalY3s2SI
    bKVrDhVxalY3s2SI
    pOZj4e4UGeWfCCRB
    tLTCha6FA6KaZLGK

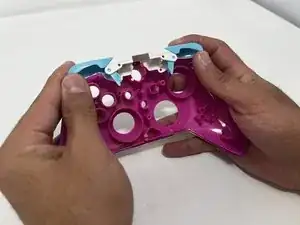

    • Put two fingers behind the bumpers and push upwards to remove them.

Conclusion

To reassemble your device, follow these instructions in reverse order.
