Introduction
There comes a time in every controllers lifespan where the battery just seems to stop working, but don't worry, with this guide you can replace the battery and rejuvenate your controller's life span.
Tools
-
-
Remove the two 10 mm Phillips #1 screws that secure each of the handle grips.
-
Pull off the handle grips.
-
-
-
Remove the four 9 mm Phillips #1 screws that secure the rear case.
-
Lift off the rear case from the controller.
-
-
-

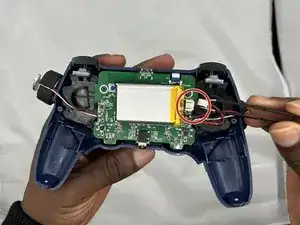

Use blunt tweezers to grip the white battery motherboard connector.
-
Pull the connector directly out of its port.
-

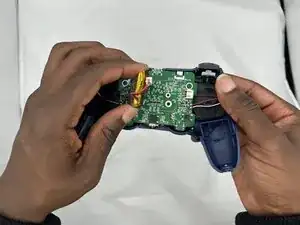

Gently peel the battery off of the motherboard.
-
Conclusion
To reassemble your device, follow these instructions in reverse order.
