Pebble Time Round E-Paper Display Replacement

Written By: Jonathan Carreiro

Comments: 2

Pebble Time Round E-Paper Display Replacement

Difficulty

Moderate

Steps

Time Required

10 minutes

Introduction

Tools

Step 1

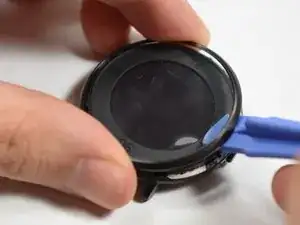

Wedge an opening tool between the case of the watch, and the glass screen bezel.
Pry the screen bezel away from the device.
If you have a difficult time getting the front bezel to separate from the case, try warming the watch up with a hair dryer.
There are three very tiny springs that are compressed between holes in the case and the front bezel. They can pop out once the bezel is removed, so don't lose them! Remove them and put them somewhere safe once the bezel is removed.

Step 2

Pull the screen protector away from the device, breaking glue sealant.
Separate the screen protector from the screen.
To re-seal the glass protector's glue, simply heat the glue.

Hi, love the instructions! One question though: What method/temperature are we talking for heating it to adhere it again? Mine fell off. I have a hair blow dryer, but what’s too hot for the electronics themselves?

Ro Bo -

I have the same question! My screen just popped off and a hairdryer didn't do a thing so I'm not sure what 'just heat the glue' means or if I need to replace the glue cause it's lost something.

jex -

Step 3

Insert a prying tool between the bezel ring and the e-paper screen. Move the tool around the circumference of the ring until it separates from the e-paper screen.

Step 4

Slightly lift the screen and you will see a yellow cable that connects to the motherboard.
Use a pair of tweezers to carefully pull the cable up from the motherboard to disconnect it.

Step 5

Use tweezers to disconnect the small yellow wire from the top of the e-paper screen.
The wire is connected with a bit of glue, so it will come off with ease.

Conclusion

To reassemble your device, follow these instructions in reverse order.
