Introduction

How to replace the hard drive in a PS3.

  1. 4ytdcEGQHo4RRQHc
    • Locate the hard drive bay cover on the side of the PS3.

  2. pOBZTPgamNDduPbe
    pOBZTPgamNDduPbe
    f1kcJx4hXcpmN1l3
    fOWtHVeeeP5ToFSC

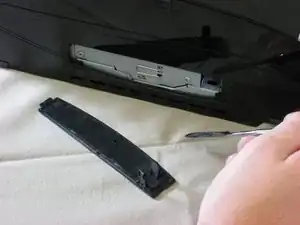

    • Remove the cover with a spudger.

  3. cDiZVneQhh2P4Iio
    cDiZVneQhh2P4Iio
    PXFNcjOdtJBhKevt
    yW3QMWKVCfsHBCTi

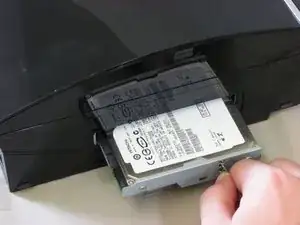

    • Lift the metal tab on the hard drive enclosure.

    • Pull the tab to slide the hard drive enclosure to the right.

    • Pull the hard drive enclosure out of the PS3.

  4. BGMEElgFJpFkPYGP
    BGMEElgFJpFkPYGP
    MYsMLO2FNouGdriH
    BqUDHCbUXIAAEHfp

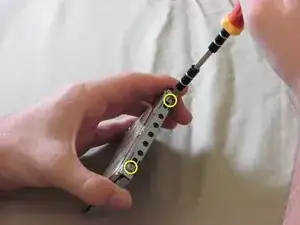

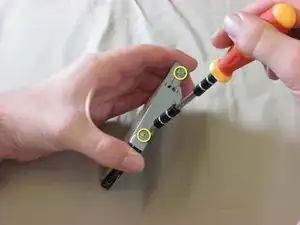

    • There are four screws on the side of the hard drive enclosure.

    • Two of the screws are shown here. The other two are on the opposite side.

    • The screws are very tight. Be careful not to strip them!

    • Remove the two screws on one side of the hard drive enclosure with a Phillips #1 screwdriver.

    • Flip over the hard drive enclosure and remove the remaining two screws on the other side.

    Be careful

    jamak -

  5. JhiJflv5IYKkDa22

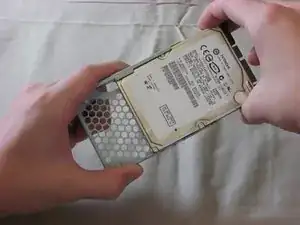

    • Carefully slide the hard drive out of the metal enclosure.

    • Note the orientation of the hard drive when sliding it out of the enclosure.

Conclusion

To reassemble your device, follow these instructions in reverse order.
