PlayStation 5 Slim Fan Replacement

Written By: Spencer Day
  • Comments: 1
PlayStation 5 Slim Fan Replacement

Difficulty

Moderate

Steps

8

Time Required

10 - 20 minutes

Introduction

Follow this guide to replace a broken or faulty fan in your PlayStation 5 Slim.

If your fan isn't spinning, is spinning very slowly, or is making very loud noises, you may need to replace it.

You can also use this guide to clean out a dusty or dirty fan.

Before purchasing a replacement fan, it's a good idea to remove your current fan and clean off any dust, dirt, hair, or grime that may have accumulated—it's possible this alone is the problem. If the fan still shows signs of being faulty after cleaning, then consider purchasing a replacement.

  1. VIoiTVZ1Ev5TaOCc
    VIoiTVZ1Ev5TaOCc
    GFXYaIEhkDaHBRKO
    1mlnNILor6mKjdWi

    • Before starting your repair:

    • Shut down your console.

    • Unplug all cables and accessories.

    • Remove any stands supporting your device.

  2. 5oRWwiQf1WwYCcjo

    • Lay your PlayStation on its side so the right side covers are facing up.

  3. ZWhs3IkSQMagtwte
    ZWhs3IkSQMagtwte
    GAxbNJviGfrhmUNY
    NNK3qRPBl2IYYwOf

    • The upper cover is secured with hooks along the back edge and clips along the front edge.

    • Firmly pull up the front edge of the cover to release the clips.

    • You'll hear distinct "pops" as the clips disengage.

    • Remove the cover.

    • To reinstall the cover, place the hooks into their cutouts along the rear edge and firmly press the front edge of the cover into place to re‑engage the two clips.

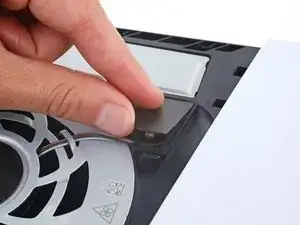

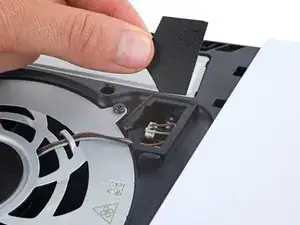

  4. DciAC3uQxmsb4VDF
    DciAC3uQxmsb4VDF
    jbLUQXXaWWR2AnPo
    nyRajcgqlQiDBQhm

    • A piece of plastic covers the fan cables connector.

    • Use your fingers to remove the plastic cover.

    • During reassembly, press the piece of plastic back into place to secure it with the leftover adhesive. If it isn't sticking, use strips of double-sided tape to secure it.

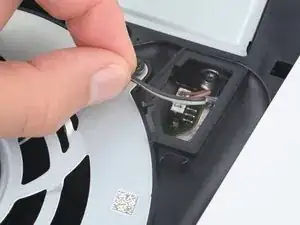

  5. CLOTdBkGv5BPYBn6
    CLOTdBkGv5BPYBn6
    4GAVXdLZMPKVWHMi

    • Gently pull the fan cables out from under their plastic clip on the frame.

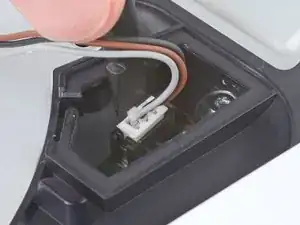

  6. vm3JESWdgjyFDyQ2
    vm3JESWdgjyFDyQ2
    5KlRmtmBw362temG
    yVhcTms1sNRSGFJZ

    • Firmly grip the fan cables white connector head and pull it straight up and out of its socket.

    • If you're having trouble, grip the cables just above the connector head, and gently pull.

    • During reassembly, align the connector over its socket and push down on the edges with the flat end of a spudger until it slides fully into its socket.

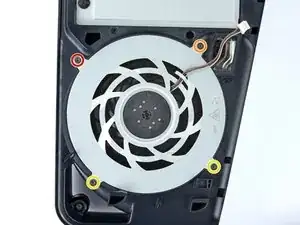

  7. qghYuK32LuRyZAve
    qghYuK32LuRyZAve
    uixgeB1ttMjAUZGl

    • Throughout this repair, keep track of each screw and make sure it goes back exactly where it came from.

    • Use a T8 Torx Security screwdriver to remove the four screws securing the fan:

    • One 11.6 mm‑long screw

    • One 31.2 mm‑long screw

    • Two 21.3 mm‑long screws

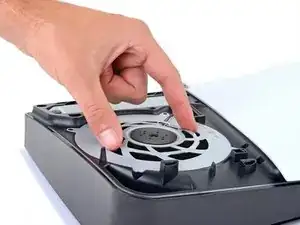

  8. 2NZbCmLBfR3oCfKX
    2NZbCmLBfR3oCfKX
    v1NnZsAYOhVVAl3J

    • Use your fingers to grab the fan by its vents, and lift it straight up to remove it.

    • Lift the fan straight up and remove it.

    • If you're using this guide to clean your fan, use compressed air and a clean cloth to remove any dust or dirt.

    • During reassembly, insert the fan so its cables are near their connector.

Conclusion

To reassemble your device, follow these instructions in reverse order.

Take your e-waste to an R2 or e-Stewards certified recycler.

Repair didn’t go as planned? Try some basic troubleshooting, or ask our Answers community for help.
