Protocol Kaptur GPS Virtual Reality Lens Replacement

Remove the phone slide from the virtual reality lens.

Take the outside cover off using a plastic opening tool.

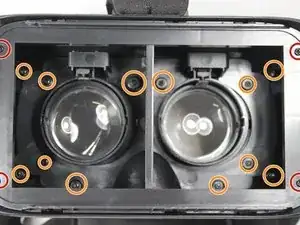

Remove each screw from its place.

Four screws will be 6mm Phillips head.

Twelve screws will be 7mm Phillips head.

Pull each bracket out so you can see the full lens case.

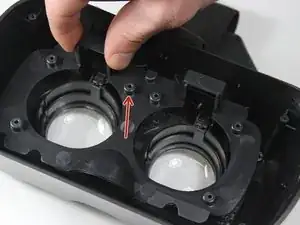

You will need to remove the adjustable lens lever on top of the virtual reality lens.

Using a tweezers, you will need to separate the tooth gears and remove them so the lens can fall freely out.

Pull the lens case out from the front of the headset.

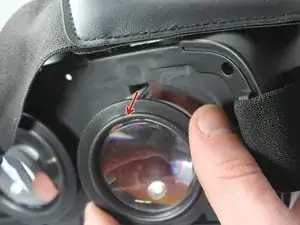

To get the actual lens out, you will need to push the lens from the outside in with a little force to break the lens out of it's case.
