Introduction
-
-
Remove the screws from the compartment cover, As show in the diagram, unscrew the screws labeled "A" first. before unscrewing "B", Don't remove screw "B" from the cover.
-
-
-
Remove the panel, but be careful as there are 2 cables linking the RGB light bar to the motherboard, carefully and gently detach them from the motherboard and lift the panel.
-
-
-

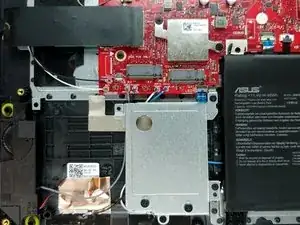

Locate the M.2 SSD slots, the First and Third slots both support SATA and PCIe NVMe M.2 SSDs, and the second M.2 Slot only supports PCIe NVMe SSDs
-
Next, Insert the NVMe SSD, and screw the SSD into place with the retaining screws
-
To reassemble your device, follow these instructions in reverse order.
