Rexel Auto X60 Shredder Service

Written By: Paul
  • Comments: 11
Rexel Auto X60 Shredder Service

Difficulty

Easy

Steps

5

Time Required

30 minutes

Introduction

Top cover safety interlock does not always work, but pressure on the top rear cover starts the shredder.

Cause: Over time the the top cover no longer engages the safety lockout. Due to plastics used and the plastic tabs employed wear down and give a little.

The safety cutout is a clever little bit of ingenuity but over time and use, it wears. If it was a little stronger it would be ok.

  1. PtIHSgTqTYPYdbcb

    • Auto X60 Shredder. Time for a clean out.

    • Remove from power outlet.

  2. 6AyXsA6JgcnFYMpj
    6AyXsA6JgcnFYMpj
    CmEK2ULxICHA4PRy

    • Remove six (6) screws. Look inside and up, they are bright in colour. These three (3) and the opposite three (3), leaving the lower six (6) untouched or the case will collapse.

    • Locate and remove six (6) recessed screws, three (3) from both sides.

    • Carefully place your hand inside and up onto the cutting blades. Lift up, and the upper unit will come away from the case.

    • Now vacuum up any paper dust and tiny shreds of paper. Small pliers or tweezers come in handy here.

  4. EBlYqvJSFritUfBW
    EBlYqvJSFritUfBW
    NBiXEbBZqJoJTQMi

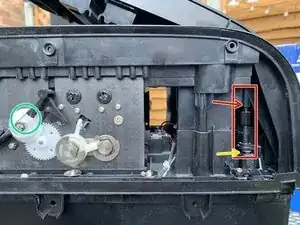

    • Locate "snubber" in the red rectangle. Notice how the round plastic pin goes into the upper plastic sleeve, if you take the further steps to "go inside" and clean, the pin needs to go back here.

    • Carefully attach sticky pad to plastic "plunger" The pads were from Lidl, so I had them lying about. The small one 10mm x 1mm thin. The added thickness makes the plunger push switch actuator down further. Thats the repair done.

    • Green circle, shows the correct placement of the Start Actuator. Plastic arm moves freely to the right of switch.

    • Please check that the cutout works when the bin is out and the top cover open.

  5. mWdQfBYTWcyTtANl
    mWdQfBYTWcyTtANl
    WLWFRlLuGU2l6mGn
    E3HxalOWUneAuTOI

    • Remove two (2) screws

    • Access by piercing label and upwards with screw driver.

    • Remove six (6) small screws to seperate the two halves. Vacuum away and use compressed air if available, (use outside).

    • Several wires hold the two halves together, just un-clip as you go.

    My problem is the feed rollers do not pick up the sheets and shred. I have to do it manually.

    Any help please

    Julian -

Conclusion

To reassemble your device, follow these instructions in reverse order.

Author

Paul

Member since: 09/10/12

795 Reputation

10 comments

Thanks for your help. What is the cause when the Shredder will not pick up the 60X shhets and shred? Do I need to replace the 4x Rubber Rollers/ Are they available please? Thanks

Steve B New Zealand

Steve Bostin -

Hi Steve, The four rollers may glaze over, just wipe with a damp cloth. (Rubber cleaner or IPA alcohol, lens wipes).

Just looked at my tyre / rollers and the rear pair are ribbed with some wear and the front pair are ribbed but look in better condition. The tyre's are all tight on each wheel and not loose or slipping round.

I would make sure the shedder works in "manual" mode, hand feed a sheet in the top slot. Check the time out function works, then try a few flat sheets in the hopper tray. I thinks it works best if the paper to be shredded is not too glossy, stapled or clipped together. Also paper with hard creases / folds does not pick up well.

Do the rollers actually rotate ?

Check the pressure back plate is free to move onto the paper stack.

That's all I can think of right now.

Q. Is the problem not shredding or not picking up sheets or both ?

Paul L, South London, UK

Paul -

I've got a Rexel 100x shredder, if I power the machine on it only feeds the paper 1cm and switches off. Then I
power it on and it feeds the paper 1cm and powers off.

Hannes Du Preez -

Thank you for the detailed instructions. Do you perhaps have any idea where I can purchase broken gears

Antoin -

Unfortunately, no, just check the streets people throw them away, freecycle, eBay, Amazon and local tips some here (UK) have recycle shop.

Paul -

I can help you find replacement plastic gears! Send me a message on eBay: https://www.ebay.com/usr/krunkz

Mr. Master -

I have a rexel shredder and when I put paper through it it doesnt shred the paper into small pieces. The paper is still whole with nicks in the paper. What is happening here. Do I throw it out or can I fix it?

Toni Lucas -

The paper passes between two close fitting roller blades. I cannot see how it goes in and out of the other side without being shredded.

The instructions to take one apart are above, get yourself the required tools and have a go you’ve got nothing to lose, if I can do it so can you send me some pictures? Give me some more information.

Paul -

I have done all of the above and it still not shredding into pieces. I brought another one today. This one is going in the garbage. Thank you for replying!

Toni Lucas -

Thanks Toni, good luck with the new one. The trick is not to feed too many papers at once. Follow the instructions and you’ll be good to go.

Paul -
