Roborock Q5 Side Brush Motor Replacement

Written By: Danielle A
  • Comments: 0
Roborock Q5 Side Brush Motor Replacement

Difficulty

Easy

Steps

6

Time Required

10 - 15 minutes

Introduction

The side brush motor powers the side brush as it sweeps dirt and debris from hard-to-reach corners. As the vacuum cleans, debris may get caught in the side brush or the motor, preventing it from spinning. Removing debris from the side brush or lubricating the motor for buildup can prevent malfunction.

If the side brush and the motor are clear of debris and lubricated, but they are still not working, the side brush motor may be defective. This guide will show you how to replace it.

Before starting this process, power off your device.

  1. 1AHOROoelcWA2xcm

    • Power off your Roborock and place the device on a flat surface with the wheels facing up.

    • Position the robot so the five-pronged side brush is on the bottom right side.

  2. 53AkC4xjTRN4mY2c
    53AkC4xjTRN4mY2c
    MsVyCUQpBDWFVr1e

    • Use a Phillips #2 screwdriver to loosen the single side brush screw.

    • The screw is attached to the side brush so they cannot be separated.

  3. JSIJDU5SsJVOKqnb
    JSIJDU5SsJVOKqnb
    6PMqrKrluxUPqYK3

    • Lift the side brush up and off.

  4. wBBnPdIDpKy42Rij
    wBBnPdIDpKy42Rij
    4TLWJd23GOuTvQcl
    Us5LBeZT21C3SkGA

    • Use the Phillips #2 screwdriver to remove the seven 15mm screws from the bottom panel cover.

  5. XSvYAhGLGKNBqNii
    XSvYAhGLGKNBqNii
    naTkLSBirWtcCa4l
    HBIOdfZndJJKxrLH

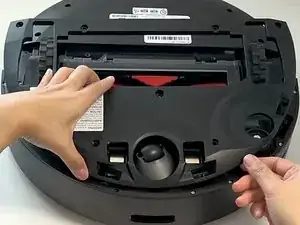

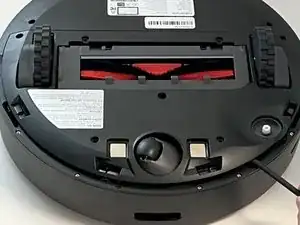

    • Gently remove the bottom panel cover.

    • If the back panel is stuck, use a plastic spudger along the edges to gently lift it out of place, then remove it by hand.

  6. UiG5yJaZpuSO1hv4
    UiG5yJaZpuSO1hv4
    gdLlRDS432YU61QC
    EYktLTbHUgnYdXOW

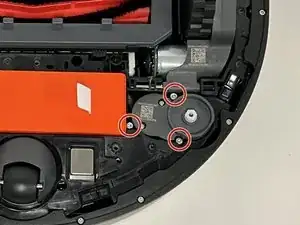

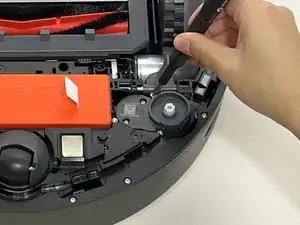

    • Use a Phillips screwdriver to remove the three 10 mm Phillips screws that secure the side brush motor.

    • Carefully lift the side brush motor up and out of its housing.

Conclusion

To reassemble your device, follow these instructions in reverse order.
