Ryobi P517 Housing Assembly Replacement

Written By: Abner Fernandez
  • Comments: 0
Ryobi P517 Housing Assembly Replacement

Difficulty

Moderate

Steps

12

Time Required

25 - 45 minutes

Introduction

Use this guide to remove the housing assembly of your Ryobi P517 reciprocating saw.

The housing assembly is the plastic outer shell of the saw that contains and protects the device's inner components. The housing assembly needs to be removed to access the inner components of the saw, such as the trigger assembly and the motor. A poorly assembled housing assembly can allow debris and/or moisture to enter and cause damage to the electrical components of the saw. Additionally, the housing assembly provides structure to the device, so its integrity is essential for user experience.

Before reading this guide, please review the Ryobi P517 Troubleshooting Page to ensure that your issue cannot be resolved externally, without removing the housing assembly. Remove the blade and battery from the saw before beginning the housing assembly removal process.

  1. jqDRVCMfYnZiwDlG

    • Position the saw so you can access the button-clips on both sides of the battery.

  2. BNRulXHjMrDWV2AF
    BNRulXHjMrDWV2AF
    qQyoZPdXMjY5x5BP
    YQAMmEFIX1YACXTm

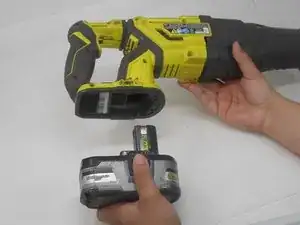

    • Press and hold the button-clip on both sides and take the battery out.

  3. jLpMcgvVDShWO2NH

    • Lay the saw flat so the left side is facing up.

    • Remove the grey orbital button by twisting it counterclockwise.

  4. qTQwMDDVD4dVt1tH

    • Remove the rubber boot from the device by peeling it from back to front.

  5. 2VaEspYBJbNI3DEY

    • Flip the saw so its right side is facing up.

    • Remove the 10 mm screw using a Torx T27H screwdriver.

  6. RZsIENfuhSNrylte

    • Grab the black shoe assembly and pull it out from the front of the saw.

  7. tZ6Wc5MWLR3oFiSI
    tZ6Wc5MWLR3oFiSI
    mFaeqowNVkKBWkZA

    • Remove the two 12.5 mm screws from the front of the guide plate using the Torx T10H screwdriver.

    • Then remove the guide plate.

  8. SWFXaNJQUp3SPN26

    • Flip the saw so its right side is facing up.

    • Use the Torx T15H screwdriver to remove the eleven 18.1 mm screws from the housing assembly.

  9. rrElvVPSYm6p2345
    rrElvVPSYm6p2345
    YKI6ECFb6IjfQqYM

    • Refer to the diagram provided to identify the gear case.

    • Use a Torx T15H screwdriver to remove the four 30.7 mm screws that are holding the housing assembly with the gear case assembly and gear case cover.

  10. kVZobXaOtCgVs41Y
    kVZobXaOtCgVs41Y
    LJAmCtZRJbeexbnA

    • Pull apart the two sides of the housing.

    • If the housing assembly does not come apart easily, do not try to force the pieces apart or else you may damage it. Ensure that all screws have been removed.

  11. QEHgaqMPIQr1mAZ5
    QEHgaqMPIQr1mAZ5
    465MIwdZVPcuNjYU

    • Refer to the diagram on the device page to locate the trigger-switch, circuit board, and contact plate assembly. Each of these parts is connected by wires.

    • Remove the switch, circuit board, and contact plate holder assembly from the housing assembly.

    • Gently remove the switch by taking out the wiring from the assembly. Rough handling of the wiring could damage it and require it to be replaced.

  12. TQ5mTZHqJxTXsZRP
    TQ5mTZHqJxTXsZRP
    aAZGQBWWyMbGXk1c

    • Lift and remove the gear case from the housing assembly and ensure that there are no parts remaining in housing assembly.

    • Ensuring the motor remains attached to the gear case to ease reassembly.

Conclusion

To reassemble your device, follow these instructions in reverse order.
