Samsung S20 Plus Screen replacement

Difficulty

Very difficult

Steps

9

Time Required

1 - 3 hours

Introduction

For the updated iFixit guide, click here. This guide is archived for historical purposes.

Inside a Samsung S20 Plus and how to repair screen

Apply lots of heat to back glass

  1. APPLY HEAT TO BACK GLASS

    • APPLY HEAT TO BACK GLASS

    • To hot touch

    • I pry straight down at bottom of back glass to get tool under glass work my way around slowly lifting with my fingers!

  2. 3tSuKfRGXLGAIxCF
    3tSuKfRGXLGAIxCF

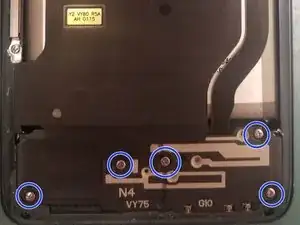

    tnOUBTdOIQHSPtPi
    XyRrhiOwr3TNBxeq

    • Remove 9 PH000 Screws from top of wireless charging pad

    • 1 PH000 Screw holding down the motherboard

    • Remove 5 PH000 Screws over the charge port removing loudspeaker

  3. SBQlLjUowCRyQUPl
    SBQlLjUowCRyQUPl
    S1aYeknmMxPeVkHV
    HtRKnrAK2oDlUnSW

    • Fold wireless charging cover upwards to unplug battery 1st

    • Disconnect Battery

    • Disconnect Wireless Charging Pad

    • Remove Pad

    • Disconnect these connections

  4. UTS1XbZccZ5oRkVC

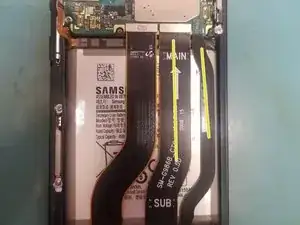

    UTS1XbZccZ5oRkVC

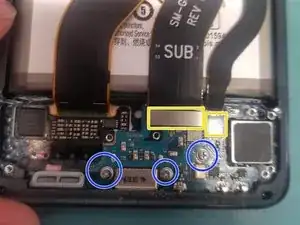

    XRNH11nZLOYGgTPo

    • Keep Charge Port Connections and Remove

    • Unscrew 3 PH000 Screws from charge port

  5. g2GKuibUN3bk5tFe

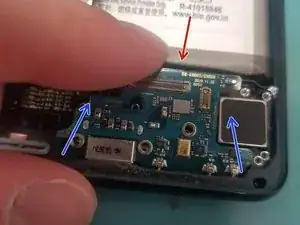

    g2GKuibUN3bk5tFe
    3oyABN2TGRnpuKXq

    • Lift from top

    • Wiggle sideways upwards to pull out charge port

  6. XRFgqpIGM3p5NYKW
    XRFgqpIGM3p5NYKW
    wUrUuQLnIqyTEXFL

    • Do not forget to remove sim card

    • Lift from the right up

    • I used a plastic tool to lift up on the top/bottum to get my fingers on it.

  7. KSMCEVnfHxWMC1HU
    KSMCEVnfHxWMC1HU

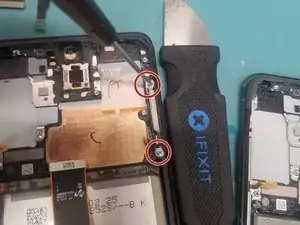

    aPjolDkL2J3afVEp

    • Remove this part will have to go in screen assembly 2 PH000 Screws

    • Remove this part 2 PH000 Screws

  8. cZOGPqWFAmOyLIKG
    cZOGPqWFAmOyLIKG
    yvgpmpkXbJRaLXva

    • Heat Battery and also use alcohol to remove strong adhesive!

    • USE PLASTIC TOOL!

    • I use a suction cup sometime for batteries in samsungs

  9. Now do the repair backwards

    • Now do the repair backwards

    • Test Phone

    • Congrats you did it remember heat is your friend

Conclusion

To reassemble your device, follow these instructions in reverse order.

Sorry for lack of pictures removing back glass
