Introduction
Use this guide to replace or remove the thumbsticks on your Scuf Reflex controller.
Tools
-
-
At the bottom tip of the right grip, insert the flat end of a spudger or a clean fingernail between the faceplate trim and the back cover.
-
Pry up to release the faceplate trim’s bottom right clip.
-
-
-
At the bottom tip of the left grip, insert the flat end of a spudger or a clean fingernail between the faceplate trim and the back cover.
-
Pry up to release the faceplate trim’s bottom left clip.
-
-
-

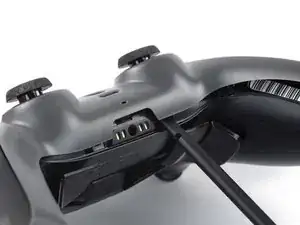

Insert the flat end of a spudger between the faceplate trim and the back cover, next to the headphone jack.
-
Pry up to release the plastic clips securing the center of the faceplate trim.
-
-
-

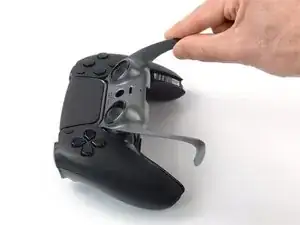

Lift the bottom edge of the faceplate trim and thread it up and over the thumbsticks.
-
Pull the top corners of the faceplate trim out from underneath the faceplate and remove the faceplate trim.
-
To reassemble your device, follow the instructions in reverse order.
Repair didn’t go as planned? Try some basic troubleshooting, or ask our Answers community for help.
