Shark Matrix RV2310 Wheel Assembly Replacement

Written By: Joshua Correia
  • Comments: 0
Shark Matrix RV2310 Wheel Assembly Replacement

Difficulty

Easy

Steps

5

Time Required

4 minutes

Introduction

This guide will show you how to replace the wheel assembly for the Shark Matrix RV2310. This replacement may be used to address mobility issues in the vacuum. It is a fairly easy replacement, though it is important to ensure the battery is removed first so that the vacuum is off during this process.

  1. K3PciyZkDdo5rIJ1
    K3PciyZkDdo5rIJ1
    EfDo6cV4wByWK1jk
    3XRsKVPKxTsQaQ2O

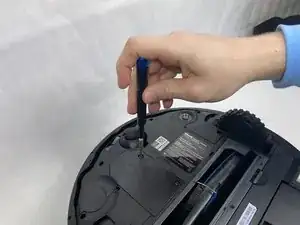

    • Remove the two 11 mm Phillips screws holding the battery plate in place.

    • Remove the battery plate.

  2. hUKLdYQxlhNctX1b
    hUKLdYQxlhNctX1b
    hu2woCO4AEvl5AQt
    6xQluLhJrLNGBiUh

    • Remove the battery from the compartment.

    • Disconnect the electrical cable connection from the battery to the robot.

  3. JLHqRUXwy2EnxqhV
    JLHqRUXwy2EnxqhV
    YiFr4Kvb5bEXFxXN

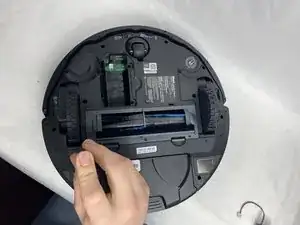

    • Remove the five 11 mm Phillips screws holding the wheel assembly in place.

    • Make sure the device's battery has been fully removed from the device before proceeding. Failure to do so could potentially result in minor/moderate injuries.

  4. WAfSUBCyldoSco1Q

    • Lift the wheel assembly out of the vacuum.

    • Do not pull or tug too hard on the wheel when lifting it, as there is a wire connection between the wheel and the motherboard.

  5. MmQqexmCXYi6UrER

    • Undo the wire connection between the motherboard and the wheel assembly by gently pulling the wire out from the wheel assembly's connector.

Conclusion

To reassemble your device, follow these instructions in reverse order.
