Introduction

This guide shows a step by step process on how to replace the rear case of the camera. You must be careful during this guide due to certain parts being very vulnerable to breaking. If the case isn't staying in position or the buttons are unresponsive take a look at our troubleshooting guide for more help.

  1. swJ4fnxRoTdnDGDH
    swJ4fnxRoTdnDGDH
    PIegEBJASIYONjLU

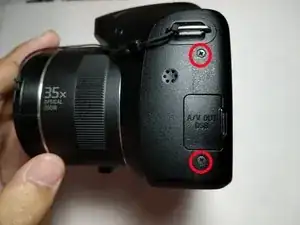

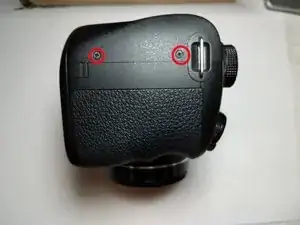

    • Remove the four 6mm Phillips #00 screws.

  2. tSrlQMxhbxXcnQTS
    tSrlQMxhbxXcnQTS
    vwyhlPchwsVuAgMG
    • Remove the two 6mm Phillips #00 screws.

    • Remove the two 3mm Phillips #00 screws.

    you need to remove one more screw inside the battery cover, you will see it once you open the battery cover.

    Belzebuth -

  3. trRLYoXgTRe46UQP
    trRLYoXgTRe46UQP
    qkUBg5PxohPaolam
    gyM2PvxUqJdLtqao

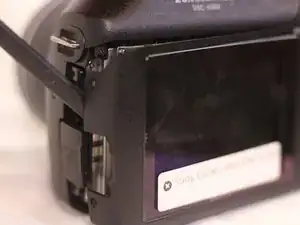

    • Use the flat end of a plastic spudger to pry apart the rear cover from the body of the camera.

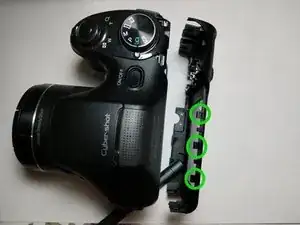

    • Be careful not to damage the three plastic clips securing the top edge of the rear cover.

Conclusion

To reassemble your device, follow these instructions in reverse order.
