Sony Cyber-shot DSC-H300 Screen Replacement

Written By: Zachary Meyer
  • Comments: 2
Sony Cyber-shot DSC-H300 Screen Replacement

Difficulty

Very easy

Steps

6

Time Required

5 minutes

Introduction

This guide will teach you how to take off the screen on the Sony Cyber-shot DSC-H300.

  1. swJ4fnxRoTdnDGDH
    swJ4fnxRoTdnDGDH
    PIegEBJASIYONjLU

    • Remove the four 6mm Phillips #00 screws.

  2. tSrlQMxhbxXcnQTS
    tSrlQMxhbxXcnQTS
    vwyhlPchwsVuAgMG

    • Remove the two 6mm Phillips #00 screws.

    • Remove the two 3mm Phillips #00 screws.

    you need to remove one more screw inside the battery cover, you will see it once you open the battery cover.

    Belzebuth -

  3. trRLYoXgTRe46UQP
    trRLYoXgTRe46UQP
    qkUBg5PxohPaolam
    gyM2PvxUqJdLtqao

    • Use the flat end of a plastic spudger to pry apart the rear cover from the body of the camera.

    • Be careful not to damage the three plastic clips securing the top edge of the rear cover.

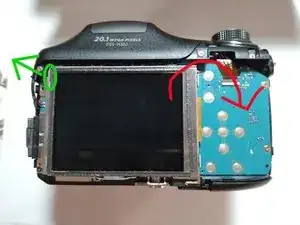

  4. PYChGAXSv3ZtokCo

    • Remove the two 6 mm Phillips #00 screws securing the left side of the metal frame.

    • Gently pull the metal frame away from the screen.

    • Lift the screen with the spudger and flip it to the right.

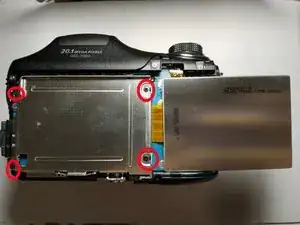

  5. SSjNLCVikIFZDML4

    • Remove the four 6mm Phillips #00 black screws.

    • Lift the metal plate away from the board.

  6. ZJLuYLmrBrVHPncP

    • Disconnect the LCD cable.

Conclusion

To reassemble your device, follow these instructions in reverse order.
