Sony WH-CH720N Charging Port Replacement

Written By: Charlie Gidcumb
  • Comments: 0
Sony WH-CH720N Charging Port Replacement

Difficulty

Moderate

Steps

6

Time Required

5 - 10 minutes

Introduction

This repair guide details how to replace the USB-C charging port on the left side of the Sony WH-CH720N. This is necessary in the event of bending/ breaking the charging port, or failure to charge.

Caution when using soldering iron as the end is HOT.

  1. EwCjgDVNEuFnxu4O

    • Place the headphones down on a table, and orient them in this way.

  2. 52ZjOJS5DLGWDAuC
    52ZjOJS5DLGWDAuC
    DINRuaIMJrgXHOpD
    pTDNVH3P4tKqpMUt

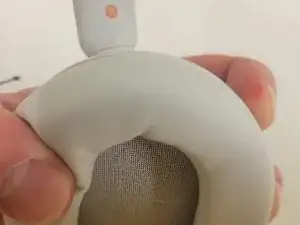

    • Remove the earmuff.

    • Check introductions to ensure you remove the correct side earmuff for each repair guide!

  3. Ek1EwGSUCiGdZQRu
    Ek1EwGSUCiGdZQRu
    qRiTfxZ2JKROX3V6

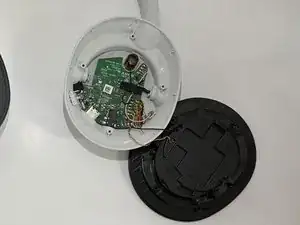

    • Use a Philips #00 screwdriver to remove the four 5 mm screws from the left driver housing.

  4. k2wTbeVcUTul5wgq
    k2wTbeVcUTul5wgq
    DPGYWaeSnXmWFttj
    yVrEhITkyxP2FEAY

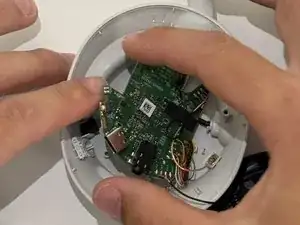

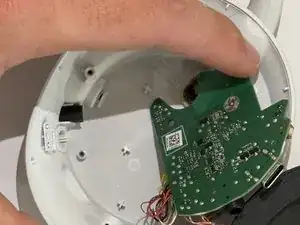

    • Using the same bit, remove the two 3 mm screws from the circuit board.

    • Gently remove the circuit board.

  5. S6QkqdYlMTp4x1Ug

    • Desolder the four joints holding the USB-C charging port there.

    • Pull the charging port off.

    • Solder the new charging port onto the board.

Conclusion

To reassemble your device, follow these instructions in reverse order.
