UTStarcom XV6700 Camera Replacement

Written By: Jesse Walker
  • Comments: 1
UTStarcom XV6700 Camera Replacement

Difficulty

Moderate

Steps

8

Time Required

10 minutes

Introduction

A small amount of disassembly is required to replace the camera. The beginner can complete this task with just a couple tools.

  1. nqnHXqsnhafJVNSC

    • Press the on/off button on the top to power the phone off.

  2. jscRY2MeosCDigiN

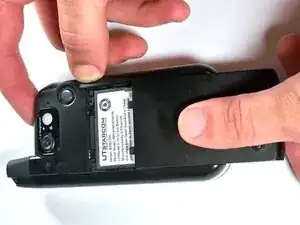

    • Remove the battery cover by pressing and sliding the cover down and off of the phone.

  3. i2Zw1kFgRUAErOAb
    i2Zw1kFgRUAErOAb
    4LVutTIqIwRCwhy2
    cPdYQ56WWnWN1EMT

    • Pull the battery removal tab and lift the battery out of the phone.

    • If the battery removal tab is missing, place a spudger on the opposite side of the highlighted connector and pry the battery up.

  4. PybZuJkHJWbjSV1d

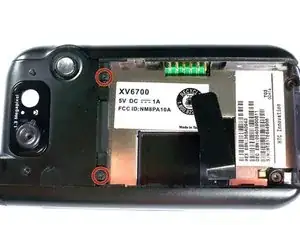

    • Remove the two 4.0-mm #000 Phillips screws at the top of the battery compartment. Tweezers may be useful to remove the screws.

  5. ufTbf4kktbX1oTdh
    ufTbf4kktbX1oTdh
    4NtQwOSNeyjSRey5

    • Use firm pressure to carefully pry off the cover with your fingers.

    When putting this cover back on, you need to align the little focus dial/switch next to the camera (under the cover) with the one on the cover, so that the one on the cover can be over the switch below.

    Matthieu Kasper -

  6. 3G6C51aiPvC2e5pQ

    • Remove the 4.0-mm #00 Phillips screw securing the camera flash circuit board. The board is still connected by a connector on the bottom of the board.

  7. QNDSqDZF6pdt1REc

    • Gently pry off the camera flash circuit board with the spudger.

  8. NwAmgub4Jb5jmQFb

    • Gently pry off the camera with the spudger.

Conclusion

To reassemble your device, follow these instructions in reverse order.
