Upgrading iMac Intel 21.5" EMC 2544 RAM Memory

Written By: jimenezser
  • Comments: 1
Upgrading iMac Intel 21.5" EMC 2544 RAM Memory

Difficulty

Difficult

Steps

10

Time Required

1 hour

Introduction

Upgrade up to 16 GB of RAM memory in your 21.5" iMac

All photos are property of iFixit

  1. u2y3LUrSXDBULh3g

    • First you need to remove the glue from the edge of the iMac

    • Use a Guitar Pick around the screen to remove the glue

    • Be careful not to damage the iSight camera

  2. JCSG1jPIjNQWGHjh

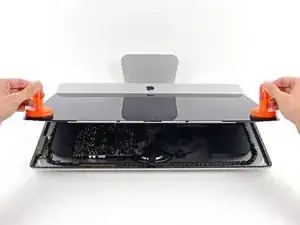

    JCSG1jPIjNQWGHjh

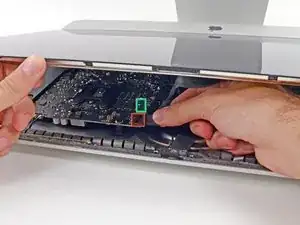

    HguJqpdG5Nh4NvPC

    • Once you are sure the adhesive is removed, use two heavy suction cups to lift the screen

    • Unplug these cables:

    • DisplayPort Cable

    • Power Cable

    • Lift the screen from the iMac

  3. SOUcDnNaqJSKEZX3

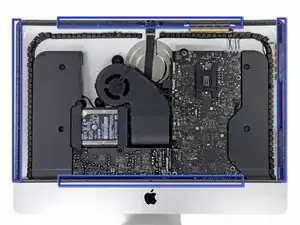

    SOUcDnNaqJSKEZX3
    L3VRiatf1GVKhxZV

    • Remove the gray tape from the iMac and the screen itself

    • When reassembling the iMac, put double sided tape on the screen and the iMac

  4. BJfZeL25UoWWbOgE
    BJfZeL25UoWWbOgE
    fJXIAgBkQryPAmfQ

    • Remove the four Torx T10 screws

    • Unplug the SATA cables and remove the hard drive

  5. y2HDif1fD2Q5LSuK
    y2HDif1fD2Q5LSuK

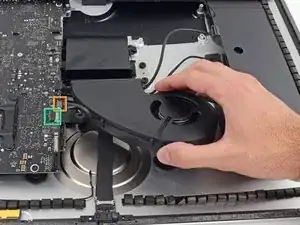

    FPbRdOxpHMonsU1O

    • Remove these 3 Torx T10 screws

    • After you remove the screws, remove these cables

    • Fan Cable

    • Unstick and unplug the camera cable

    • After you remove the fan, remove the hard drive bay removing a single Torx T10 screw

  6. whIv1GamCUwcHIBm

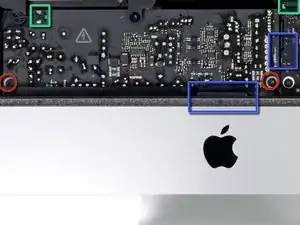

    whIv1GamCUwcHIBm
    BylQBR3XlNy1VHwt
    vXVJEAUZ3X6t6vyV

    • Remove these 2 Torx T10 screws

    • Unplug these 2 cables

    • Unplug 2 more cable below the power board by pressing the clip

    • The power board is hard to remove from its place, remove it carefully

  7. mGS46dLfhhoJvsLn

    • Remove the cables out of the clip

  8. HiAhTc6MIF5hhWnt
    HiAhTc6MIF5hhWnt
    vEQFb4YTjDJMLGkH

    • Unplug these 4 antenna connectors

    • When reassembling be sure that the connectors are in the same place

    • After that, remove these two Torx T10 screws

    • Move the speaker and unplug the cable from the logic board

    • Remove these other cables

    • For finish, remove these four Torx T10 screws

  9. XPJZd3sETcW4lXrr

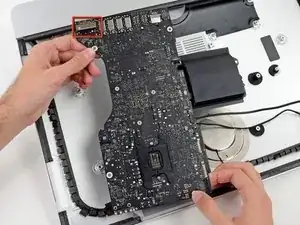

    XPJZd3sETcW4lXrr
    J4jlLItvOcnE1MwZ

    • Unscrew 3 Torx T8 screws from the heatsink, then remove the logic board from the iMac

    • Be careful not to damage the SD card reader with the screw mount

    Color the heatsink screws. I missed it for the longest time (that it was the black piece next to the board).

    Scott Auch -

  10. cY3eBpSLVHxPABRr
    cY3eBpSLVHxPABRr
    2JNx4mrDByLVTIOR

    • Flip the logic board over and release the tabs from each side of the RAM

Conclusion

To reassemble your device, follow these instructions in reverse order remembering to re-glue the screen.
