VTech Baby's Learning Laptop Buttons Replacement

Written By: Christopher Kourmoulakis
  • Comments: 1
VTech Baby's Learning Laptop Buttons Replacement

Difficulty

Easy

Steps

7

Time Required

10 minutes

Introduction

Does your device not respond when buttons are pressed? Do only a few buttons seem to function correctly? This guide will walk through the steps required to replace the buttons.

  1. iVivn2HWYeXjOSwp

    • To remove the battery door, loosen the screw shown using a Phillips #2 screwdriver.

    • A coin can also be used to loosen the screw.

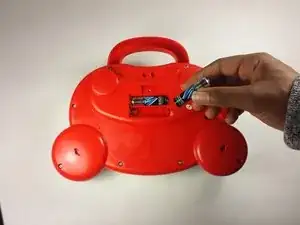

  2. mXEx4dGKS5k6O6ct

    • Remove the battery door.

    • Take out the batteries.

  3. 5OencTLpgZbANSOZ

    • Remove the rear panel screws using a Phillips #2 screwdriver.

    • Two 21.6mm (Long)

    • One 9.8mm (Short)

    • Five 13.8mm (Medium)

  4. DSsiVaGkpRhua2Zp
    DSsiVaGkpRhua2Zp
    Q5S1VVMZmtIrVMcD

    • Gently pull up on the rear panel.

    • Be careful not to pull on the wire connections.

    • Rest the laptop open on the table.

    Laptop is not playing sound after putting new batteries . Can you tell how to repair the same.

    Sapna -

  5. XFTNUltRSsj5UZIG

    • Using a Phillips #0 screwdriver remove the two 6.0mm screws.

  6. WERWEr3f4qr5yrjR
    WERWEr3f4qr5yrjR
    xXJArwIw3XsSyfUg

    • Lift up on the board and set it aside.

    • Movement of the board will be limited. Be careful not to damage the connection to the motherboard.

  7. 5ooZy4FZuUQxCfqH

    • Remove each button and button contact.

Conclusion

To reassemble your device, follow these instructions in reverse order.
