VW Key Fob 2007 Passat Replace Battery Replacement

Written By: Daniel Green
  • Comments: 4
VW Key Fob 2007 Passat Replace Battery Replacement

Difficulty

Moderate

Steps

8

Time Required

No estimate

Introduction

How to replace the battery in a 2007 VW Passat Key Fob

  1. QUKSYsmPWD5YE3Eu

    • What you will need.

    • Key Fob from a 2007 erra VW

    • 2032 coin cell Battery

    • Small flat head screwdriver

  2. mDc5OuDZr1R5Rdqm
    mDc5OuDZr1R5Rdqm
    6bwVByrtNv4f46RE

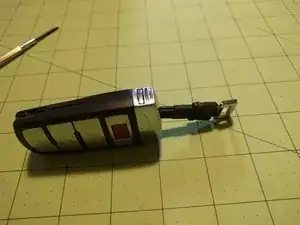

    • Press button to remove plastic emergency key.

  3. 3H5POZnnuG5TZPWU
    3H5POZnnuG5TZPWU
    qXSvFffJiIGNoRoY
    JNLX5xHZQ3cV6NQH

    • Push it sideways from the opposite side from the button.

  4. SaNcmqaCEaDa2LUE

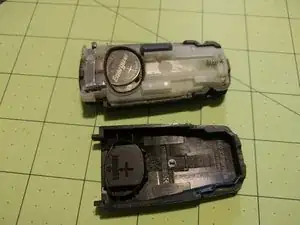

    • With chrome end cap off this should be pretty easy.

  5. AoM6fJypvp12QEix

    • Use small screwdriver to lift out the old battery.

  6. QFBeQL3c1UIZyBXy

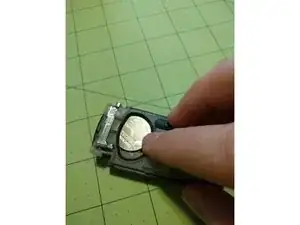

    • Battery should slide in easily.

  7. HIFQpwWcIDwkJCPV

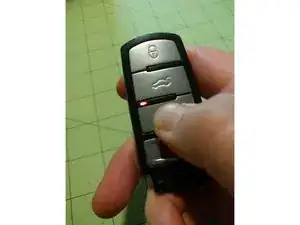

    • Paying the unlock button should flash an LED

  8. 36YcGb5TA1RTlFWi
    36YcGb5TA1RTlFWi
    Odiea6OGBX6S3khf
    xcdbesicUbXfIUCi

    • Put everything back together in the reverse order of taking it apart.

Conclusion

To reassemble your device, follow these instructions in reverse order.
