Introduction

This guide will help you replace the “ok” button on your Vizio t.v remote controller. The “ok” button is a key button on this controller because, without it, you won’t be able to select anything on your t.v screen. Please make sure to remove the battery before taking apart the remote.

  1. edShgmJgwesLWP4y
    edShgmJgwesLWP4y
    3Qn4IFLkVTiPvs1j

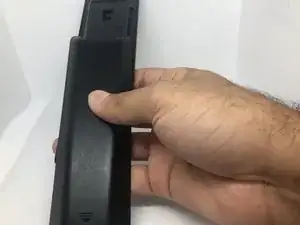

    • Open the back cover with the direction of the arrow.

  2. vujY1ZrRBK2KHnZG
    vujY1ZrRBK2KHnZG
    lcAeRyAEqsbifIgs
    • Remove the two batteries.

  3. bVdiKiTDUmX2HuPs
    bVdiKiTDUmX2HuPs
    SvHHhRIR4cFtfCjX
    BLGtaGF1Rlf2DQEM

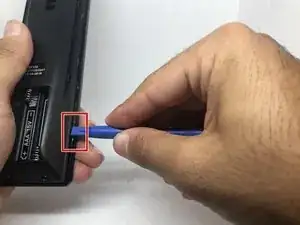

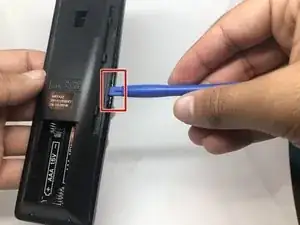

    • Use the plastic opening tool to unlock the device. Place the tool in the thin space that separates the base from the control panel.

  4. gMQF6ghFHFicE6xU
    gMQF6ghFHFicE6xU
    6autRuhKQPNXgEVi
    • Move the opening tool between the two sides to lift the base up slightly.

    • Continue on the other side of the remote.

  5. rsU5IFA3VekRqOfy
    rsU5IFA3VekRqOfy
    FkxMJLC2WLSwH3gg

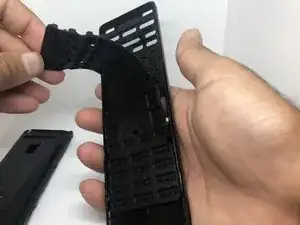

    • Remove the rubber buttons pad.

  6. alTDEKPnM2HbXgLY
    alTDEKPnM2HbXgLY
    FFseyHgIG6TMsjka
    • Remove the arrows pad from the plastic cover.

  7. OEp3ZnaDVpnRDZbL
    OEp3ZnaDVpnRDZbL
    cgD5THBJsP6JWRYV
    aML1F32PqLBJBsmr

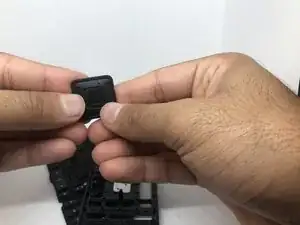

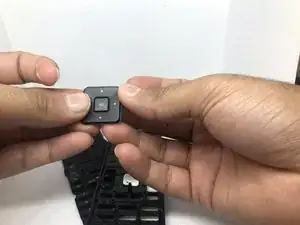

    • Place the "ok" button in the middle of the arrow pad.

Conclusion

To reassemble your device, follow these instructions in reverse order.
