Introduction

If your Voluas VL001 pet feeder is having problems with dispensing any food, you may have an issue with your electric motor. The motor that turns the mechanism to dispense food can burn up, which requires replacement to fix.

This replacement requires special skills like wire stripping and soldering.

  1. 6B6RKUxYLNPaEP4E
    6B6RKUxYLNPaEP4E
    o6dRDK4T6sy2BTc5
    1ZHMSLwJjsAwTKXM
    • Remove the lid to the storage tank by using the latch and lifting off.

    • Grab the food storage tank on both sides. Depress the tabs that say "Push" on them and lift the tank off.

  2. AvSVHMICmOXkVB1k
    AvSVHMICmOXkVB1k
    CWHyLmixtnvsVxZf
    FJvXS2KaKOL4inGE
    • Place your pet feeder upside down.

    • Squeeze the lock and remove the battery cover.

    • Remove the three 1.5V D alkaline batteries.

  3. ISFQVvLLZWxXKlt5
    ISFQVvLLZWxXKlt5
    LkZmoKdgn1WUYlRh
    NBofxGGXlLBlxIjJ
    • Insert a metal spudger under the adhesive part of each rubber foot.

    • Pry the foot off.

  4. sbAhlDXVMN5d1H2b
    sbAhlDXVMN5d1H2b
    vGUAfO4UJLXvUZOC
    • Remove four screws from the corners of the device using a Phillips #2 screwdriver.

    • These holes were previously covered by the rubber feet.

    • Using the magnetic tip of the screwdriver, carefully lift the screw out of the hole.

  5. onq4NQJiPF2XsEZR
    • Turn the device over so it is oriented right-side up.

    • Lift the top part of the feeder off, exposing the mechanisms that run the feeder.

  6. 1dhgHK5NtYZ3kh4E
    1dhgHK5NtYZ3kh4E
    B5tndwZOtbSZEJUg
    Zv1GOY2nFxnRYfLl

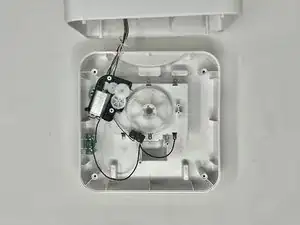

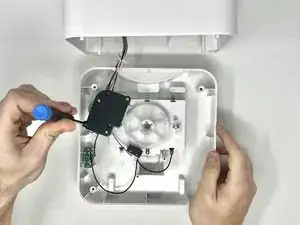

    • Using a Phillips #2 screwdriver, remove the six 11.2 mm screws that hold the motor housing on to the device.

  7. 1xY36NXXhn6Tg5SH
    1xY36NXXhn6Tg5SH
    aU5GvwKCAS5BebnD
    • Using the pliers, cut the red and black wires that attach to the posts on the end of the electric motor.

    • Note which wire is connected to which post on the motor so that you do not mix them up when soldering to the new motor.

  8. pidgY5qAMuDwbmqm
    pidgY5qAMuDwbmqm
    1ODVBQw4oyBGQxBK
    YU3fj4h3Gn6AYhrc
    • Using your wire strippers/pliers, gently crimp the plastic insulation on the wire. Do this several times around the wire to make sure that you can pull it off.

    • Because the wire is so thin, it can be easy to accidentally cut all the way through the wire on this step. Take care to only cut through the insulation.

    • You will want to see a score line in the insulation all around the wire like this.

    • Pull the end of the insulation off, exposing the wire.

  9. DWXLINFQGLLe1hyX
    DWXLINFQGLLe1hyX
    LXXaJaHpMclS1ImS

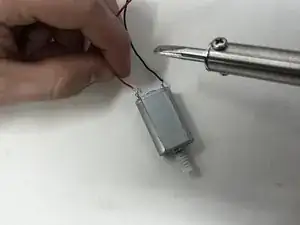

    • Place the newly cut wire on the post, making sure that it is in good contact with the soldering pad.

    • Solder the wire on to the pad.

    • Repeat steps 8 and 9 for the other wire.

Conclusion

To reassemble your device, follow these instructions in reverse order.
