Introduction

If your Voluas VL001 pet feeder is having problems with getting food out, you may have an issue with your feeder mechanism. This is the part that has a fan-like shape and rotates to dispense food out of the device.

  1. 6B6RKUxYLNPaEP4E
    6B6RKUxYLNPaEP4E
    o6dRDK4T6sy2BTc5
    1ZHMSLwJjsAwTKXM
    • Remove the lid to the storage tank by using the latch and lifting off.

    • Grab the food storage tank on both sides. Depress the tabs that say "Push" on them and lift the tank off.

  2. K6DHLlW62KwxMDQY
    K6DHLlW62KwxMDQY
    BMb6ISL3XZhjl2HV
    Z6rfYIOS2bxYEYSo

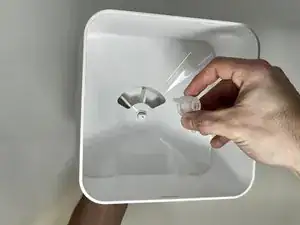

    • Grab the spindle from the bottom.

    • This will prevent the feeder from spinning while you loosen the screw.

    • Using a Phillips #2 screwdriver, remove the single 11.6 mm screw in the center of the topside of the feeder mechanism.

    • Once the screw is removed, grab the three-pronged silicone agitator and remove it from the feeder.

  3. vEX3OYmHfstmGE5u
    vEX3OYmHfstmGE5u
    yS2RWrNcmDmrw2If
    BPkGcEFfURJsnsLQ

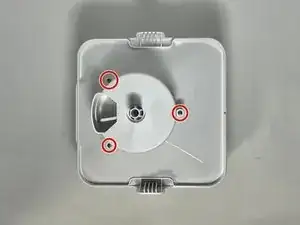

    • Flip the storage tank over so that the bottom side is facing up.

    • Using a Phillips #2 screwdriver, remove the three 11.3 mm screws that hold the plastic cap onto the bottom of the tank.

    • Lift the plastic cap off the tank.

  4. 3WGkrSHwpbFey4TY
    3WGkrSHwpbFey4TY
    IgwWADL4qUNeP6IA
    • Firmly grab the spindle of the mechanism and remove it from the bottom of the tank.

Conclusion

To reassemble your device, follow these instructions in reverse order.
