WRS315SDHW Defrost Thermistor Replacement

Written By: nicO
  • Comments: 0
WRS315SDHW Defrost Thermistor Replacement

Difficulty

Moderate

Steps

9

Time Required

15 - 30 minutes

Introduction

Use this guide to replace the defrost thermistor in your Whirlpool WRS315SDHW Refrigerator.

The defrost thermistor measures the temperature of the evaporator in your freezer during the defrost process and allows the main control to cycle the defrost heater. If your defrost system doesn't work properly, your defrost thermistor might have failed.

To replace the refrigerator thermistor, follow this guide instead.

Note: Some photos show the doors removed for clarity purposes. Removing them is not required and will not change the procedure.

  1. GAB31IUS1UwNdE6E

    • Before you begin your repair, perform the following:

    • Turn off your main water supply

    • Unplug your device

  2. uZnovp3POltPPcNl
    uZnovp3POltPPcNl
    EEmEHtDyinkLLTC6
    NpS45AODrJVIyexU

    • Depending on your repair, open one or both doors.

  3. hkAwPUpRPNIPxRGV
    hkAwPUpRPNIPxRGV
    L4ikmh2NQXFogcpt

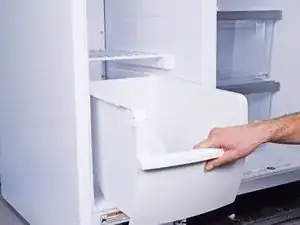

    • Remove the drawers and shelves from the freezer section.

  4. PYjtoq32XfA1ZLfx
    PYjtoq32XfA1ZLfx
    vH1YKrFTgcoJSpj3

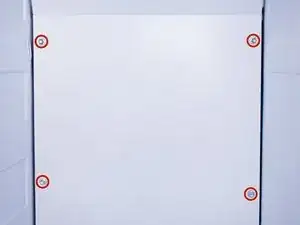

    • Remove the screw(s) securing the evaporator cover.

  5. EHSDsDxpXbXtjjSW
    EHSDsDxpXbXtjjSW
    Wf2DVMGatSZhfSRa
    2oHDgU6UMdQXqWmO

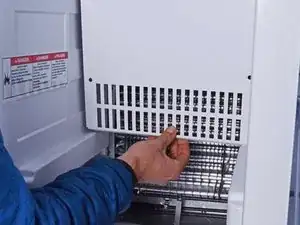

    • Lift the bottom of the evaporator cover up and over its lip in the chassis.

    • Pull the cover toward yourself to release its top clips.

  6. YeaE3oqkUY5iSaJh
    YeaE3oqkUY5iSaJh
    TdRPKBwJHWNGAEoK
    41LUePiTbxqKJb1K

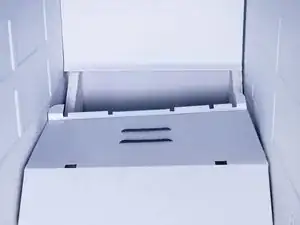

    • Continue pulling the evaporator cover towards yourself to unclip its metal prongs from the chassis.

    • Remove the evaporator cover.

  7. DxExeZuMdHtGcEBB
    DxExeZuMdHtGcEBB
    kV1ioJlYFTTuNcle
    GGoET3MrstSudIWH

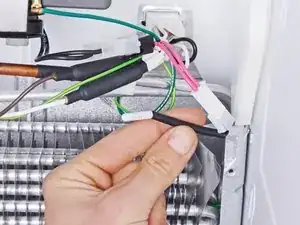

    • Use a spudger to push the tip of the thermistor through its slot in the wire harness.

  8. ToVIAyYICklxvFCQ
    ToVIAyYICklxvFCQ
    bdmPTIVykiTVFEvC

    • Disconnect the thermistor from the wiring harness.

  9. QSUxjJFjsWcSCxoA

    • Remove the thermistor.

Conclusion

To reassemble your device, follow these instructions in reverse order.
