Introduction

Instructions to replace winder motor and gear assembly.

  1. Z2UvOuVKjTYVopSE
    • Turn the winder off

    • Unplug the power cord

  2. eaBsJk3jERSeXrDT
    eaBsJk3jERSeXrDT
    c4XRENHaRODMAFrT

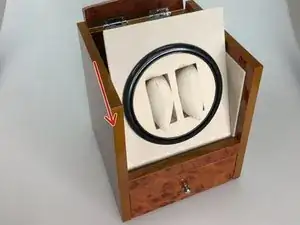

    • Pull angled turntable platform toward you by upper seam

  3. fAif4YQnptERZGoO
    • Unplug motor connection cable from circuit board

  4. VcJuyGIH2YHNeZTa
    VcJuyGIH2YHNeZTa
    Ux4MiZkC2D3NLRNV
    • Unscrew two retaining screws from gearbox

    • Remove round watch insert

    • Unscrew single retaining screw from cup

  5. AKpZmOANr21ly2bY
    • Pull gearbox and motor out from back of the turntable platform

    • Follow steps in reverse order to replace motor

Conclusion

To reassemble your device, follow these instructions in reverse order.
