Whirlpool Duet Dryer WED9200SQ1 Main Board Replacement

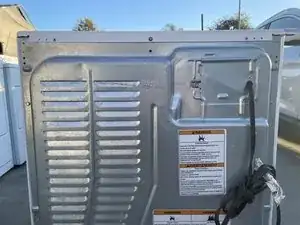

Use a T5 Torx screwdriver to remove two 6.3 mm screws. from the top back of the dryer.

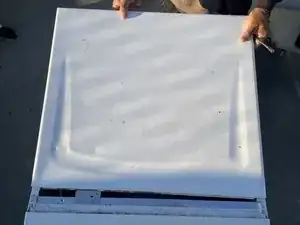

Slide the top of the dryer off to access the internal components.

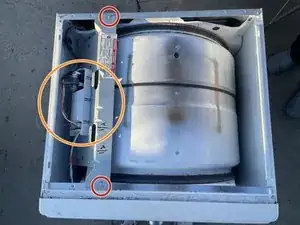

Use a T5 Torx screwdriver to remove two 6.3mm screws.

The circuit board is mounted on a metal rack..

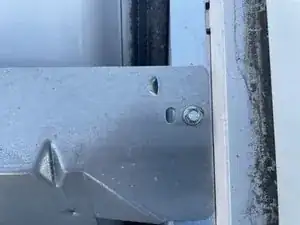

Use a T5 Torx screwdriver to remove the 6.3 mm screws on both ends of the metal shelve.

Slide the metal shelve out to access the main board.

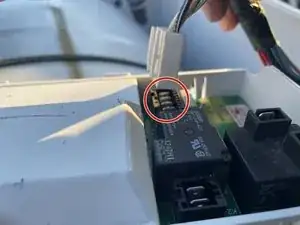

Remove all the circuit wires from the circuit board. Grab the wire that has the red circle to remove the wire.

Remove the other wires.

Keep on removing the wires until every wire is disconnected from the old circuit.

Once you've disconnected the wires, the wires should look like this in the image.

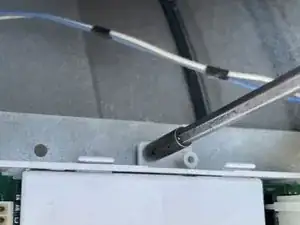

Use a T5 Torx screwdriver to remove the screw that has 6.3mm of the metal part. Same again, move to the left to get rid of the screw.

Use your hand to grab the old circuit and move it from the left to the right to get the circuit removed.

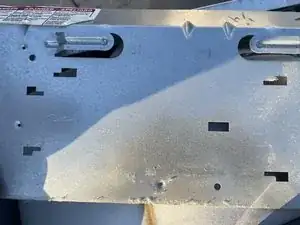

There should not be anything on the board.

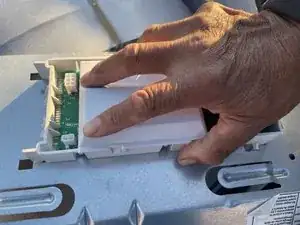

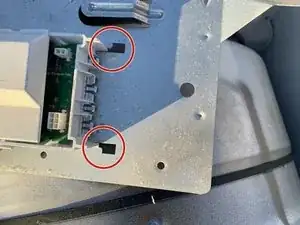

Use the new circuit to put in the board. Ensure the two white hooks are connected to the metal part.

Use the T5 Torx screwdriver to screw the 6.3mm to the new circuit attached to the metal board. To do this part, move to the right that the screw should be tight.

The new circuit should be tight with the screw.

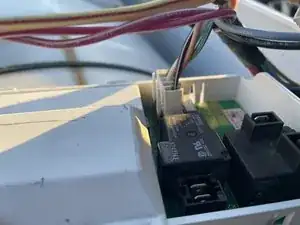

Reconnect the wires into the new circuit.

Put the orange and red wire into the circuit.

Do to the other wires shown in my image.

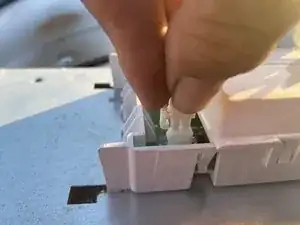

Insert the wire into the circuit.

Put the wires in the exact spot with the image provided to know where to put them.

Attach the white wire to the circuit.

Use the T5 Torx screwdriver to screw 6.3mm at both sides of the metal board so it will not fall.

Put the board on top since the inside has been done.

Use a T5 Torx screwdriver to screw 6.3mm to the right to make it tight.

Once finished sewing to the left, use a T5 Torx screwdriver to screw the 6.3mm screw to the right.

Once you are done screwing the back, the dyer should be ready to use.
