Xbox One Optical Drive Laser Replacement

Written By: Austin Stein
  • Comments: 0
Xbox One Optical Drive Laser Replacement

Difficulty

Moderate

Steps

8

Time Required

30 minutes - 1 hour

Introduction

This guide explains how to replace the Xbox One's optical drive laser. Replacing the optical drive laser serves as a simpler solution for problems with the optical drive without the need to replace the console’s paired motherboard and optical drive daughterboard.

  1. Om41rVuPJK2poihX

    • Make sure the optical drive is not connected to any power source and is powered off.

    • Unscrew the four Phillips #1 screws on the top of the optical drive.

  2. SlHTIt3r4rscITZ5

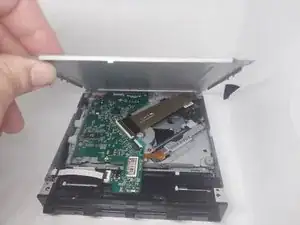

    • Lift the lid off of the optical drive case, this should require little to no force.

  3. BT2XJqAMQdTvEMHM
    BT2XJqAMQdTvEMHM
    fkEGy53hJJuIEUnH

    • Slide the remaining optical drive case off of the internal components.

    • Internal components often snag on these points when removing the optical drive case.

  4. wCRkpBJoaGHv3xQj
    wCRkpBJoaGHv3xQj
    vFYVUrJWtesTmgKh

    • Locate the three ZIF connectors on the optical drive PCB.

    • Using tweezers, gently lift the tab on each ZIF connector to release the ribbon cables.

    • Remove the ribbon cable from each ZIF connector.

  5. tqxWcVXr6XNfAOOs

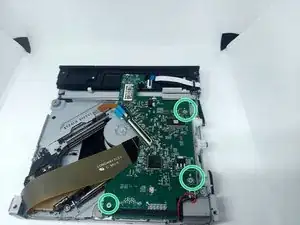

    • Unscrew the three Phillips #0 screws mounting the PCB.

  6. agbJOMymFSUSaGmS

    • Gently lift the PCB and place it to the side.

    • When lifting the PCB, be careful to not detach the wires connecting the PCB to the motor.

  7. nAIWokWGhjFUaFVP

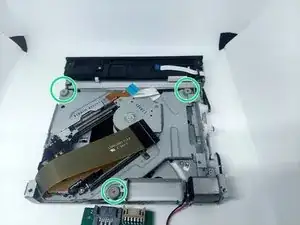

    • Unscrew the three Phillips #0 screws mounting the optical drive laser.

  8. lirWgDWteqgvaaOX

    • Lift the old optical drive laser from the unit and place in the new optical drive laser.

Conclusion

To reassemble your device, follow these instructions in reverse order.
