Xbox Series X|S Controller (Model 1914) Back Housing Replacement

Written By: Manuel Haeussermann
  • Comments: 4
Xbox Series X|S Controller (Model 1914) Back Housing Replacement

Difficulty

Moderate

Steps

13

Time Required

20 - 35 minutes

Introduction

Use this guide to remove or replace the back housing on your Xbox Series X|S Controller (model 1914).

The back housing may need to be replaced if it's cracked, or you may be installing a new, customized one. The back housing is sometimes also called rear panel, backplate, back cover, or back shell.

  1. fGWBOKPHpp5HSnQr
    fGWBOKPHpp5HSnQr
    n4xIYV6MgTJFeT5L
    uG16NxBaI1wQ55wj

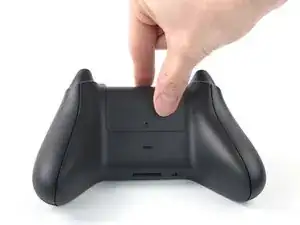

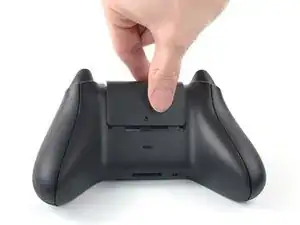

    • Use your fingers to slide up and remove the battery cover.

  2. 41oB3Y5hrGhLowJA
    41oB3Y5hrGhLowJA
    SVRVCSruSUYZgHHu
    ytLV5hMcGPosxwAd

    • Remove the batteries.

    • When re-inserting the batteries, make sure to position them correctly, with their positive (+) and negative (–) ends matching up with the markings on the controller’s battery contacts. If your batteries are starting to corrode, replace them with new batteries.

  3. SKZEdX3QSobavyu3
    SKZEdX3QSobavyu3
    binvfjuvoi62cBwh
    UV2gdW4lFjg22uLB

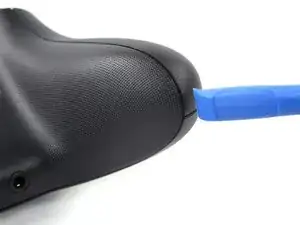

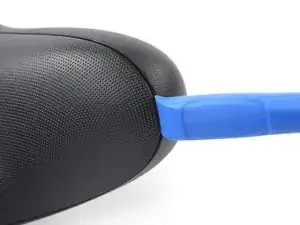

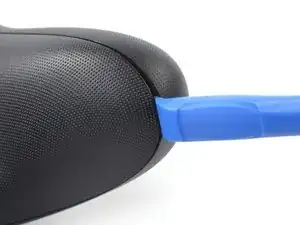

    • Insert an opening tool between the left handle cover and the bottom inner edge of the back housing.

    Before doing this step, it is recommended to clean the edges of the cover

    Violynos -

    Thanks for adding this tip!

    Manuel Haeussermann -

  4. WPfNqN1dPbKCXZIs
    WPfNqN1dPbKCXZIs
    XlvLyUmboPT4JgmW
    v6CYYaJYwHyQsiSP

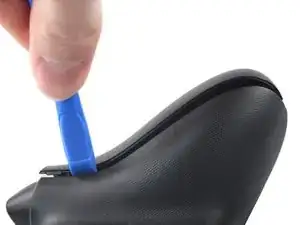

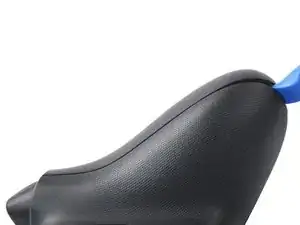

    • Strong plastic clips secure the handle cover. Significant force is required to release them.

    • Slide the opening tool along the inner edge of the left handle cover and pry intermittently to release the plastic clips.

  5. PYLnCUqAkTPfkfMZ
    PYLnCUqAkTPfkfMZ
    ENNxbJI6gGpP6Ij4
    S5LCNcRyNBUtIKsR

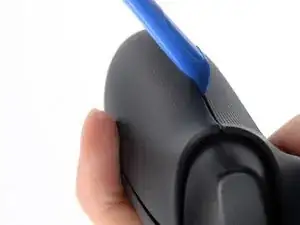

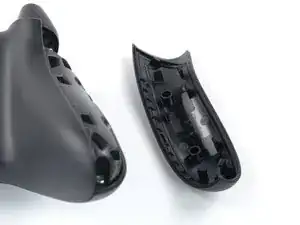

    • The plastic clips on the outer edge make it difficult to slide along it and release the clips. Therefore, prying up on the inner edge is the easier option.

    • Pry up the middle inner edge of the handle cover with the opening tool to release the remaining clips.

    • Place a finger on top of the handle cover to prevent it from being forcefully ejected.

    • Remove the left handle cover.

    • To reinstall the left handle cover, position it on the back housing and press down firmly along the edges to engage all of the clips.

  6. nc2jnwSRKrtckCcy
    nc2jnwSRKrtckCcy
    2RvcVdnxMAucHZDK
    hNtWlQH2fwXvYkjj

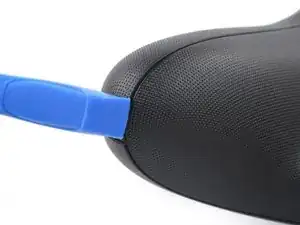

    • Insert an opening tool between the right handle cover and the bottom inner edge of the back housing.

  7. nPeROMGOeOcOLgxm
    nPeROMGOeOcOLgxm
    dJdKQkOnjlsnR4OK
    1oIFaTi6p5fYwJJ4

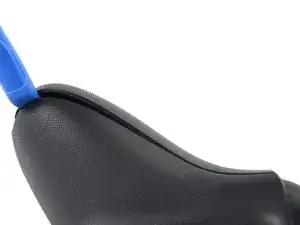

    • Strong plastic clips secure the handle cover. Significant force is required to release them.

    • Slide the opening tool along the inner edge of the right handle cover and pry intermittently to release the plastic clips.

  8. hRluiJFD65Xvf1oO
    hRluiJFD65Xvf1oO
    jLU4F1WGBaGKVHku
    xJC3GcDk2glqVaud

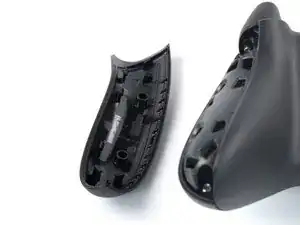

    • The plastic clips on the outer edge make it difficult to slide along it and release the clips. Therefore, prying up on the inner edge is the easier option.

    • Pry up the middle inner edge of the handle cover with the opening tool to release the remaining clips.

    • Place a finger on top of the handle cover to prevent it from being forcefully ejected.

    • Remove the right handle cover.

    • To reinstall the right handle cover, position it on the back housing and press down firmly along the edges to engage all of the clips.

  9. BQcFXKHL51fKEWJD
    BQcFXKHL51fKEWJD
    HDdlQYkVHHTCT1KW

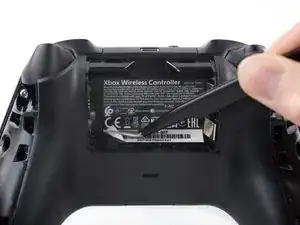

    • The sticker in the battery compartment covers a housing screw. Peel it back or pierce through it with a screwdriver.

    • Use a pair of tweezers or your fingers to peel back the sticker to reveal the screw.

    • You only need to peel this sticker to where you can access the hidden screw. You don't need to pull it completely off.

  10. e1LH5a14nJoEjC4q
    e1LH5a14nJoEjC4q
    FCBvqqV1hmh4XXvA

    • Use a Torx T8 Security screwdriver to remove the five 9.3 mm-long screws securing the top housing, three near the top and two at the bottom.

    I found that for me a T8 H screw (the one with a hole in the middle) works better.

    Violynos -

    Hi Violynos, thanks for your comment! The designation Torx T8 security screw is equivalent to Torx T8H.

    Manuel Haeussermann -

  11. M2PiWeABAXUiy1Q2
    M2PiWeABAXUiy1Q2
    C5vyDdF1Mv3prJew
    WILZkeALQ4PDMQOl

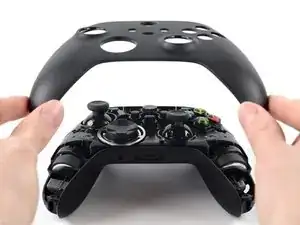

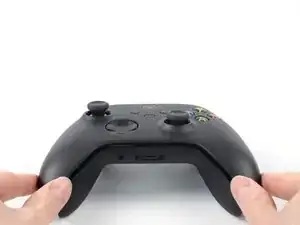

    • Lift the top housing straight up to remove it.

  12. ITwt4DI3gTgQepMF
    ITwt4DI3gTgQepMF
    FZFOIrs5HMIQG2yX
    CL5xFVp5dwu4uInJ

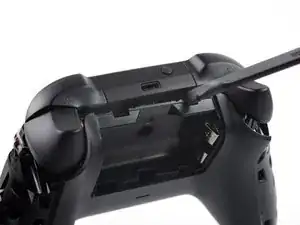

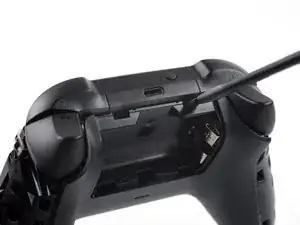

    • Insert the flat end of a spudger into the rectangular gap between the midframe assembly and back housing, nearest the left bumper.

    • Twist the spudger to partially release the midframe assembly.

    • Repeat this prying procedure on the gap near the right bumper to completely release the midframe assembly.

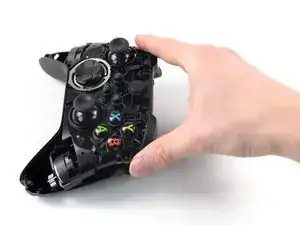

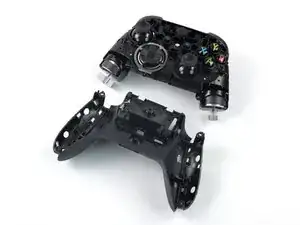

  13. NONRDcRpvJVM3C2I
    NONRDcRpvJVM3C2I
    PrIWAkBnhCkCYlGF
    TunqTO3Gc5jPwokO
Conclusion

To reassemble your device, follow these instructions in reverse order.

Take your e-waste to an R2 or e-Stewards certified recycler.

Repair didn’t go as planned? Try some basic troubleshooting, or ask our Answers community for help.
