Yamaha YZF-R6 Fan Relay Replacement

Written By: Jose Perez 323
  • Comments: 0
Yamaha YZF-R6 Fan Relay Replacement

Difficulty

Easy

Steps

7

Time Required

30 minutes - 1 hour

Introduction

Overheating is a common issue with motorcycles, often caused by cooling fan failure. This problem is easy to fix and requires only a few tools. To complete this repair, you will need a #1 Phillips-head screwdriver, a flat-head screwdriver, and a hex key set, specifically with a 10mm Allen key.

  1. G3KryqrfkKRXBvUR
    G3KryqrfkKRXBvUR
    UNdCeWZkY4WRm6gk
    oQONAZiSRHGGIbad

    • Use your motorcycle's key to open the rear seat, and remove the seat to access the tool pouch.

  2. nDHDKUnPLTKZXI4k
    nDHDKUnPLTKZXI4k
    P36A3X4QtjiNPxWw

    • Use a 10 mm Allen key to remove the front seat and expose the battery.

  3. 3nUc1IDtGOQtRBiq
    3nUc1IDtGOQtRBiq
    SNoVYdUSaS2XcwlB

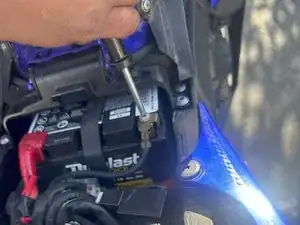

    • Using a Phillips-head screwdriver, remove the screws attached to the battery terminals.

  4. hfRWNZjOlZNTIhVv
    hfRWNZjOlZNTIhVv
    na4AtVlFA5OAkWFP
    GAIZEOIx1wJ2YSQA

    • Using the 10mm Allen key, remove the hardware securing the left side fairings.

  5. c6BYXTqnFoAluMX2
    c6BYXTqnFoAluMX2
    YCLe16cYDgtuPqYA
    XoVStmUxfRbIgPMA

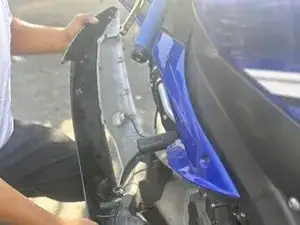

    • Remove the middle fairing on the left-hand side, and carefully unclip the turn signal cable.

  6. lZhtHcIT3IdmRRKP
    lZhtHcIT3IdmRRKP
    XAAXbJo1YAEMSc2R
    hfAjrRT5Gq66o6SG

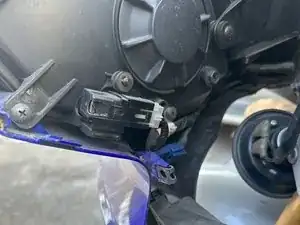

    • Once you have removed the left-hand cover under the clutch lever, locate the relay assemblies for the lights and cooling fans.

  7. k61cGMOn3ib4U2wC
    k61cGMOn3ib4U2wC
    WNJoxYZMAMIQH5hv

    • Use a flat-head screwdriver to gently pry the locking mechanism open on the relay assembly. You can remove the relay by itself or with the bracket assembly.

Conclusion

To reassemble your device, follow these instructions in reverse order.
