ZCWA BR151 Sprayer/Pump Replacement

Written By: Gavin H. Stackhouse
  • Comments: 0
ZCWA BR151 Sprayer/Pump Replacement

Difficulty

Moderate

Steps

9

Time Required

30 - 45 minutes

Introduction

Use this guide to install or replace a new sprayer or pump for the ZCWA BR151. The part itself functions as the primary way for water to lightly jet out of the device's mopping feature. The replacement of this part could prevent any leaking that the device may be experiencing. To access the sprayer/pump, several pieces will need to be removed from the device. Before beginning, make sure the device is turned off and the water tank is empty of any water.

  1. khL162rHJj1UNFr6

    • Turn off the device.

  2. ILLh34buEXYPjmMo
    ILLh34buEXYPjmMo
    hDXAKXKJSw4tNJRF

    • Remove the water tank by sliding the latch down with a finger and grasping the bottom of the water tank.

    • Pull it out.

  3. SHqTnmJKZlTpQTNu
    SHqTnmJKZlTpQTNu
    4nURNlFZbWCXWfbA

    • Flip the device over to access the bottom panel.

    • Remove the cloth mop covering by lifting it from the velcro on the plastic mop attachment.

    • Remove the plastic mop attachment by placing your fingers underneath and prying it up.

  4. 46SAFsT3RwlrnbLR

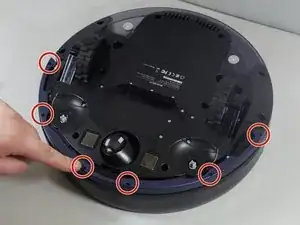

    • Remove the six 6 mm screws on the bumper guards using a Phillips #0 screwdriver.

    • Remove the bumper guards by lifting them.

  5. rRDRE2cBvqlRMfqi

    • Use a Phillips #1 screwdriver to remove the ten 10 mm screws from the bottom plate.

  6. PbIwKdpcF2nE6Ddq
    PbIwKdpcF2nE6Ddq
    IqqtR6yCrLZPldZI

    • Carefully lift the bottom panel off of the top.

    • The top and bottom panels are attached by a set of wires. They will not fully detach at this point.

    • Gently place the bottom of the device on your workspace surface, wheels down, exposing the inner workings of the device.

  7. amGLNLeIo2TFvL31

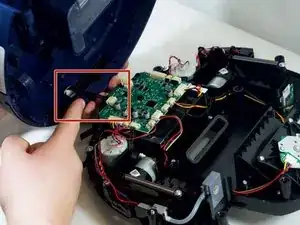

    • Though optional, we recommend separating the top and bottom panels for easy access to the sprayer/pump.

    • Pinch the wire bracket that is on the top panel while pulling the bracket away.

    • Pull the cable away from the connector in the same direction as the individual wires are running.

    • Pull evenly on the full width of the cable so that no individual wires are overly strained.

  8. xslvYKrbQFxxBfQB
    xslvYKrbQFxxBfQB
    FgNmP63KVaBIQQRc
    VnoBpyX6pjXlQf1R

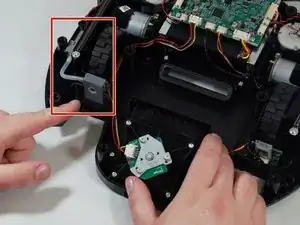

    • The sprayer is slotted in place with grooves. Slide up the sprayer by lifting it up with your fingers.

    • The sprayer/pump should loosely be free, except for wires connecting it to the motherboard.

  9. pArV4Ql6UH4E2SXO
    pArV4Ql6UH4E2SXO
    X5iZFyVTOQerPcEp
    BxePbUyB5lNP1yHA

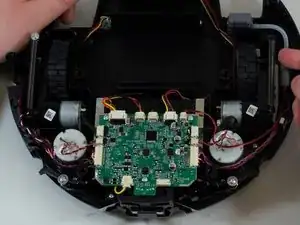

    • Turn the device around so that the motherboard is closest to you.

    • Track the red and black wire cables from the sprayer/pump to the motherboard.

    • Remove the sprayer/pump wiring from the port on the motherboard by pinching the silver brackets and pull the wire casing away from the motherboard.

    • Pull evenly on the full width of the cable so that no individual wires are overly strained.

    • Remove the sprayer/pump from the vacuum.

Conclusion

To reassemble your device, follow these instructions in reverse order.
