iPhone 5s Battery Connector Replacement

Written By: Sam Goldheart
  • Comments: 2
iPhone 5s Battery Connector Replacement

Difficulty

Moderate

Steps

3

Time Required

No estimate

Introduction

  1. YgIgnn3mp6WZKGNG

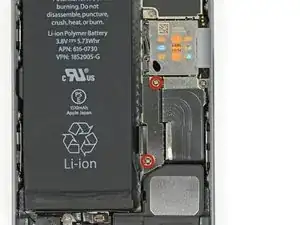

    • Remove the two 1.6 mm Phillips #000 screws securing the metal battery connector bracket to the logic board.

    The battery steps really are NOT required to perform the camera removal......I skipped them completely.

    Melissa -

  2. LGCpEYh3UHJqs4IE

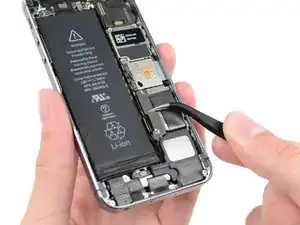

    • Remove the metal battery connector bracket from the iPhone.

  3. xhmWCIoYe6WQHBW5
    xhmWCIoYe6WQHBW5
    YiO3ca4WEZImkWNK

    • Use the flat end of a spudger to gently pry the battery connector up from its socket on the logic board.

    • Be very careful to only pry up on the battery connector and not the socket on the logic board. If you pry up on the logic board socket, you may break the connector entirely.

    Need a picture of the socket, after the battery cable has been lifted so we can see what it's supposed to look like.

    TerribleHacker -

Conclusion

To reassemble your device, follow these instructions in reverse order.
