Introduction
This guide will show you how to replace the filter in the iRobot Roomba i7 Plus (model number l7555020). The filter traps dirt and other materials to prevent them from going back into the air. If you see dirt or other particles going back into the air, then you may need to replace your filter.
For help diagnosing issues with the filter, check out the troubleshooting page.
-
-
Turn the Roomba so the iRobot logo is oriented correctly relative to you.
-
Place a finger on the release latch to the left of the dust bin.
-
Press down on the release latch.
-
Remove the dust bin.
-
-
-

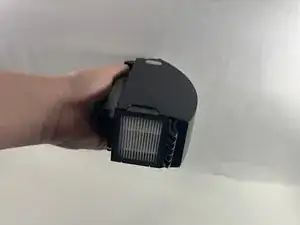

Orient the dust bin so the connection port is facing left.
-

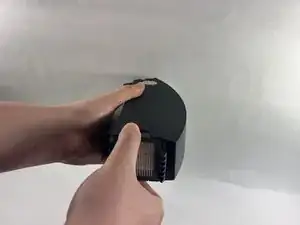

Grab the filter on the notches provided at the top and bottom and pull towards you while keeping the dust bin stationary.
-
To reassemble your device, follow these instructions in reverse order.
