iView-776TPCII Wi-Fi Antenna Replacement

Written By: Cory Gratzer
  • Comments: 0
iView-776TPCII Wi-Fi Antenna Replacement

Difficulty

Difficult

Steps

4

Time Required

7 - 10 minutes

Introduction

Having trouble keeping consistent Wi-Fi on your tablet? If so, use this guide to replace your Wi-Fi antenna. It should also be noted that, when separating the antenna from the motherboard, there is a connection that must be desoldered before it can be fully removed.

  1. sFtFYEBpoQV4WRVx
    sFtFYEBpoQV4WRVx
    JAIAn5POHubWiPH5
    MZyGMcMMsTxYXdAM

    • Before disassembling your device, make sure that the power is completely turned off.

    • Use the plastic opening tool to release the clips holding the rear panel of the device onto the front section.

    • The clips may take some pressure before releasing.

    • Continue around the entire device until all of the clips have been released.

  2. ftnsJ5H2cnyTChCh
    ftnsJ5H2cnyTChCh
    FXl2vIMktgap5UiB

    • Use a spudger to carefully free the speaker from it's housing on the back panel.

    • Place the spudger between the speaker and the rear panel. Use a prying motion to remove the component.

    • Be careful not to apply an over amount of force. If care is not taken, the speaker could break under the pressure.

  3. SwE55gsEqUhwKrBR
    SwE55gsEqUhwKrBR
    cZdDb6r3TWnnPiWK

    • Detach the end of the Wi-Fi antenna from the tape on the edge of the shell.

  4. cJSIMLrsUgqcnRZc

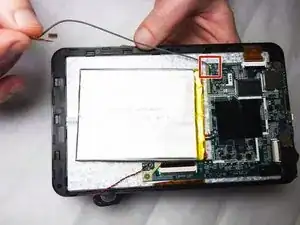

    • Use the Portable Soldering Iron tool to heat the lead coming from the Wi-Fi antenna to the logic board, thereby breaking the connection.

    • For help on soldering, refer to the iFixit "How To Solder and Desolder Connections" technique guide as necessary.

    • Once heated, use tweezers to pull the wire free from its connection.

Conclusion

To reassemble your device, follow these instructions in reverse order.
