Introduction

How to disassemble Geek Bar disposable vaping unit.

  1. Til1S3fTY2WZScEa

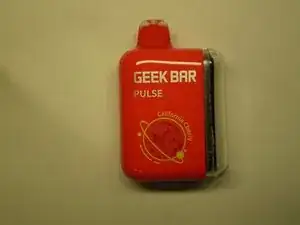

    • Use a wood chisel (~1 inch) along the seam to break loose the clear cover. The cover snaps into place but may be lightly glued.

  2. aZi5dqh5ccCEZ5WG
    • Pull out the internals. You will need to push in the on/off switch at bottom of unit to get the insides to slide out.

  3. xEHN5ZxquImnNkLw
    • Detach tank. Note location of wiring if you are going to reassemble unit.

  4. PVC6uxI6FqLyjOPQ
    PVC6uxI6FqLyjOPQ
    a5iCkZcHxyQuRZIV
    4NKAXBPHkd4jQRTc

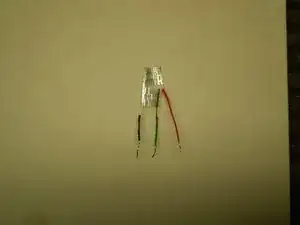

    • Pull off top of tank.

    • Pull heater unit out of steel sleeve.

    • Remove flat wick from heater

    • Observe basket style heater unit. Resistance readings: blk-grn: 1.1 ohms; blk-red: 1.1 ohms; red-grn: 2.2 ohms

  5. L2sCXBlGwJ6ZnTES
    L2sCXBlGwJ6ZnTES
    kd3MElTWqQcGyV1D

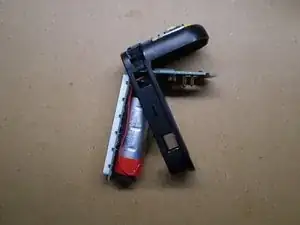

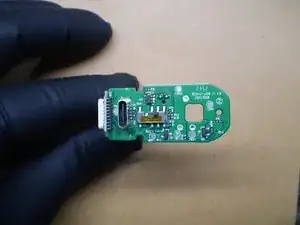

    • Unsnap the circuit board from the L-shaped plastic holder.

    • View board.

  6. evQiXXN16NMUTPPJ
    • The lip piece can be unsnapped from the inside, pulled out from the top and disassembled as shown.
