Mac Pro 2009-2012 Graphics card Replacement

Written By: Branning Goody
  • Comments: 6
Mac Pro 2009-2012 Graphics card Replacement

Difficulty

Easy

Steps

7

Time Required

4 - 10 minutes

Introduction

  1. LMKaIWEuuYgs5d5G
    LMKaIWEuuYgs5d5G
    cUyyaRroDXoWO4Kp

    • Use hands to unscrew the retaining brackets.

  2. jHRQOFJHIgDnrKeN
    jHRQOFJHIgDnrKeN
    T2KhhnYPZltxMCt5

    • Push the white button on the side of the fan and push back gently until snap.

    • You should see numbers as the pictures show.

  3. SeSBYYYDuCv1JNj2
    SeSBYYYDuCv1JNj2
    hW4TQTpZZDAILH5s

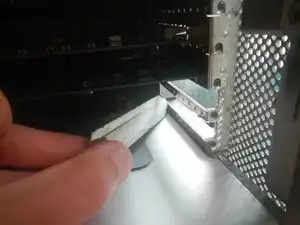

    • Pull the old graphics card out gently from the PCIe slot and a PCIe holder if you have a new dual-socket replacement card.

  4. ZHTVuBeVCDog3Zqf
    ZHTVuBeVCDog3Zqf
    2Ak1QKUJlEsDnfpb

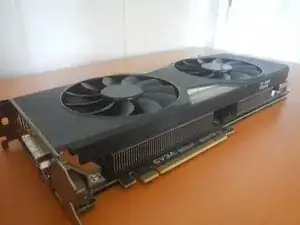

    • Have your new graphics card nearby and any power cables if your GPU requires external power.

  5. PsjqGT1LOvc1RSqE

    • Skip this step if your graphic card does not require external power.

    • Plugin your mini 6 pin connectors to the logicboard but don't plug it into GPU yet.

  6. iy5xLmvGSJPBJgdB

    • Put the new GPU where your old one once was and make sure it is in tight and that it aligns up with the crew holder.

    • Then push the fan brackets back into position(until you hear a click).

    • Screw in the thumbscrew that holds all cards and your GPU in place.

  7. 4K1sRqCGOTeh3rhM

    • With the power, you just plugged into the logic board, now connect it to the GPU. Like show in the picture and put the lid of the Mac Pro back on and start it up.

Conclusion

To reassemble your device, follow these instructions in reverse order.
