Introduction

If your Voluas VL001 pet feeder audio recording is distorted or is not playing when your kibble is dispensed, this has to do with your speaker. The speaker plays a voice recording of your voice so your pet recognizes when it is time to eat.

This replacement requires special skills like wire stripping and soldering.

  1. 6B6RKUxYLNPaEP4E
    6B6RKUxYLNPaEP4E
    o6dRDK4T6sy2BTc5
    1ZHMSLwJjsAwTKXM
    • Remove the lid to the storage tank by using the latch and lifting off.

    • Grab the food storage tank on both sides. Depress the tabs that say "Push" on them and lift the tank off.

  2. AvSVHMICmOXkVB1k
    AvSVHMICmOXkVB1k
    CWHyLmixtnvsVxZf
    FJvXS2KaKOL4inGE
    • Place your pet feeder upside down.

    • Squeeze the lock and remove the battery cover.

    • Remove the three 1.5V D alkaline batteries.

  3. ISFQVvLLZWxXKlt5
    ISFQVvLLZWxXKlt5
    LkZmoKdgn1WUYlRh
    NBofxGGXlLBlxIjJ
    • Insert a metal spudger under the adhesive part of each rubber foot.

    • Pry the foot off.

  4. sbAhlDXVMN5d1H2b
    sbAhlDXVMN5d1H2b
    vGUAfO4UJLXvUZOC
    • Remove four screws from the corners of the device using a Phillips #2 screwdriver.

    • These holes were previously covered by the rubber feet.

    • Using the magnetic tip of the screwdriver, carefully lift the screw out of the hole.

  5. onq4NQJiPF2XsEZR
    • Turn the device over so it is oriented right-side up.

    • Lift the top part of the feeder off, exposing the mechanisms that run the feeder.

  6. Zf1pZOoglLkC6L4Z
    Zf1pZOoglLkC6L4Z
    SAOiGVU1VSGhxga6
    • Using a Phillips #2 screwdriver, remove the six 11.2 mm screws that hold the motor housing on to the device.

    • Remove the motor assembly and set it to the side.

  7. kHMvH5rZG1dh5vUI
    kHMvH5rZG1dh5vUI
    jZQMIrBykWn1pNTD
    • Using an opening tool, remove the clear glue covering the two screws.

  8. NdYMNDAZcrXqomAU
    • Use a Phillips #2 screwdriver to remove the two 6 mm screws from the speaker.

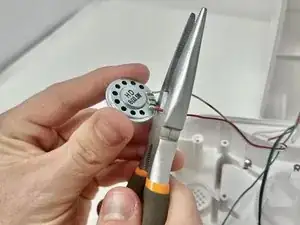

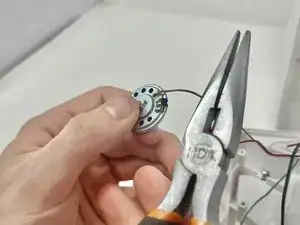

  9. 2uXVYOUbFT3COWBP
    2uXVYOUbFT3COWBP
    tKZ6RjefrfE1ALCC
    • Using your wire strippers/pliers, cut the two wires that are connected to the speaker.

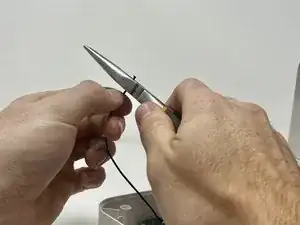

  10. rFm2CIjdhTIdcAPI
    rFm2CIjdhTIdcAPI
    RSf2abSB3RNMi5HA
    1ChZbQiTMdxW1HHm
    • Using your wire strippers/pliers, gently crimp the plastic insulation on the wire. Do this several times around the wire to make sure that you can pull it off.

    • Because the wire is so thin, it can be easy to accidentally cut through the wire on this step. Take care to only cut through the insulation.

    • You will want to see a score line in the insulation all around the wire like this.

    • Pull the end of the insulation off, exposing the wire.

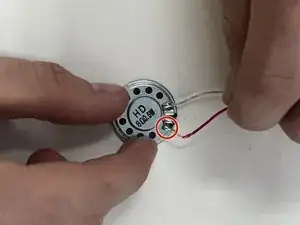

  11. Ebn6VcmHOemAW6fI
    Ebn6VcmHOemAW6fI
    NOXn2WjSZTfrMy5B
    • Put the exposed wire on the solder patch, making sure it has good contact with the metal.

    • Solder the wire on to the solder patch.

    • Repeat steps 10 and 11 for the white wire.

Conclusion

To reassemble your device, follow these instructions in reverse order.
