iPhone 11 Pro Max Connector ID

Written By: Alisha C
Published: 02/06/24
  • Comments: 0

iPhone 11 Pro Max Connector ID

Published: 02/06/24

Teardown

Introduction

Are you trying to troubleshoot a specific part not called out anywhere you can find? Want to verify a theory or double check your gut? This connector ID guide can assist!

  1. 4GNbqDNUXmPZAcay

    • Upper Battery FPC connector

    • Cellular Antenna FPC connector

    • Dock Assembly FPC connector. See Step 4 for more details on what this includes.

    • Display FPC connector

    • Receiver Speaker and Front Sensors FPC connector.

    • Touch (Digitizer) FPC connector

  2. kihEZLTvf1oIHmIs

    • Infrared Camera FPC connector

    • Dot Projector FPC connector

    • Wide Rear Camera FPC connector

    • Telephoto Rear Camera FPC connector

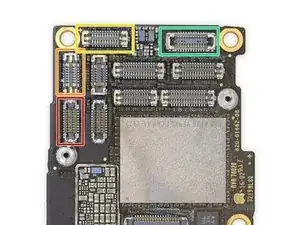

  3. SOYWGEMEsEPwpG4A

    • Front Facing Camera FPC connector

    • Rear Mic, Power Button, Flash, and Various Antenna FPC connector

    • Super Wide Rear Camera FPC Connector

    • Additional Antenna FPC connector

  4. nuwn4sK3h16nejKQ

    • Taptic Engine FPC Connector

    • Lower Battery FPC Connector

    • Wireless Charging and Volume Buttons FPC Connector.

    • Loudspeaker FPC Connector
