Android Custom TextView dotted line

Question

I am trying from many day but did not get any solution . i have refer this Android:Draw line on a textview I have tried to create dotted line in text view , done with it , working fine , but i want to add dotted line till length of the text that text view contain , If Text View have one line text then it work fine But if text view have multi line text then for the line which have text half or less then screen width then also dotted line appear with i dont want.... I draw dotted line using Paint ...please help me .... Thanks in Advance

Answer 1

Relying on the topic, in which you do, try to write in the constructor of the class LinedEditText

mPaint = new Paint();
    mPaint.setARGB(255, 0, 0, 0);
    mPaint.setStyle(Paint.Style.STROKE);
    mPaint.setPathEffect(new DashPathEffect(new float[] {10,10}, 0));

instead of

mPaint = new Paint();
    mPaint.setStyle(Paint.Style.STROKE);
    mPaint.setColor(0x800000FF);

EDIT:

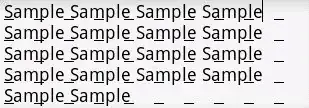

and tell me please again, do you want like this:

or this:

EDIT:

MainActivity:

public void onCreate(Bundle savedInstanceState) {
    super.onCreate(savedInstanceState);

    LinearLayout ll = new LinearLayout(this);
    ll.setOrientation(LinearLayout.VERTICAL);
    LayoutParams textViewLayoutParams = new LayoutParams(LayoutParams.WRAP_CONTENT, LayoutParams.WRAP_CONTENT);

    String text = "Sample Sample Sample Sample Sample Sample Sample Sample Sample Sample";

    LinedEditText et = new LinedEditText(this, null, text);
    et.setText(text);
    et.setLayoutParams(textViewLayoutParams);
    et.setKeyListener(null);

    ll.addView(et);

    this.setContentView(ll);
}

LinedEditText:

public class LinedEditText extends EditText {
private Rect mRect;
private Paint mPaint;
String text;

public LinedEditText(Context context, AttributeSet attrs, String text) {
    super(context, attrs);
    this.text = text;

    mRect = new Rect();
    mPaint = new Paint();
    mPaint.setARGB(255, 0, 0, 0);
    mPaint.setStyle(Style.STROKE);
    mPaint.setPathEffect(new DashPathEffect(new float[] { 10, 10 }, 0));
}

@Override
protected void onDraw(Canvas canvas) {
    Rect r = mRect;
    Paint paint = mPaint;

    int lineCount = getLineCount();
    int size = getLayout().getLineStart(lineCount-1);

    String str = getText().toString().substring(size);

    float densityMultiplier = getContext().getResources().getDisplayMetrics().density;
    float scaledPx = 20 * densityMultiplier;
    paint.setTextSize(scaledPx);
    float i = paint.measureText(str);

    for (int k = 0; k < lineCount-1; k++) {
        int baseline = getLineBounds(k, r);
        canvas.drawLine(r.left, baseline + 2, r.right, baseline + 2, paint);
    }

    int baseline = getLineBounds(lineCount-1, r);
    canvas.drawLine(r.left, baseline + 2, i, baseline + 2, paint);

    super.onDraw(canvas);
}
}
